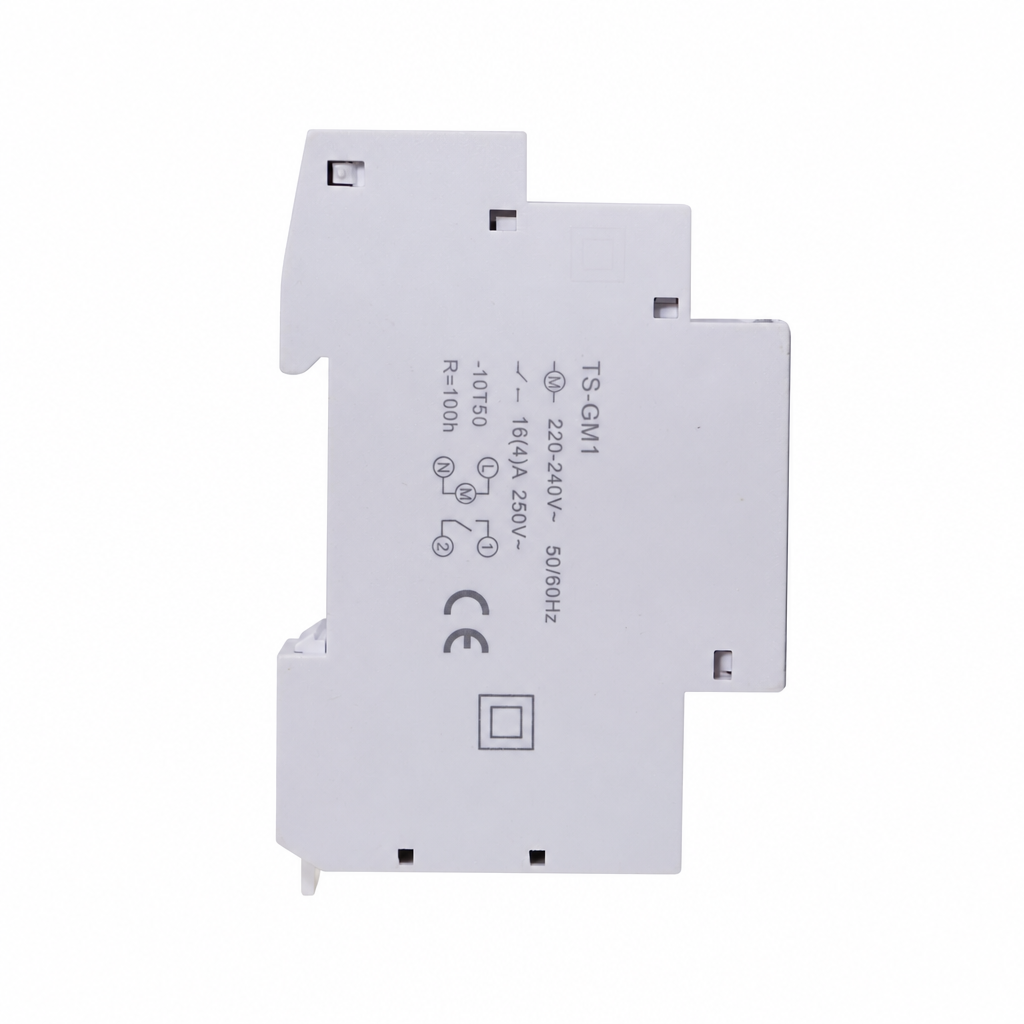

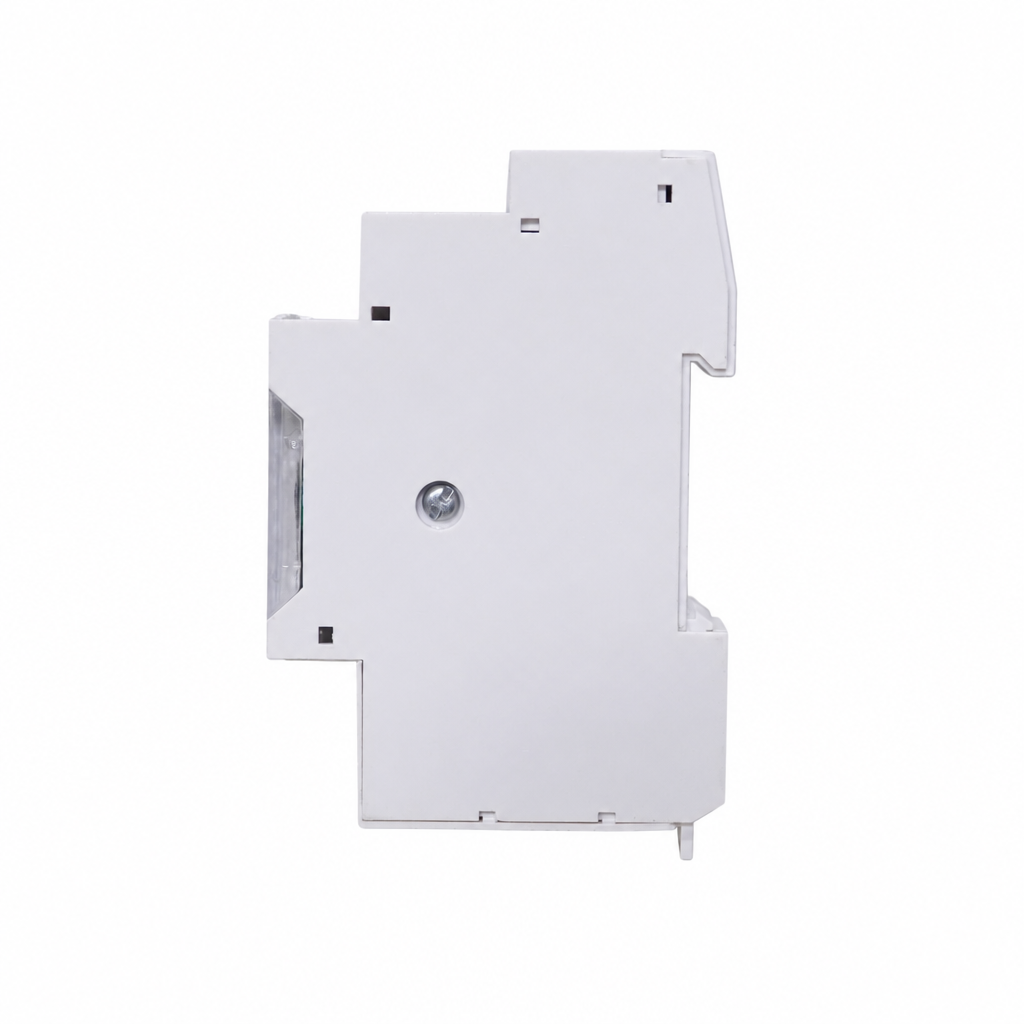

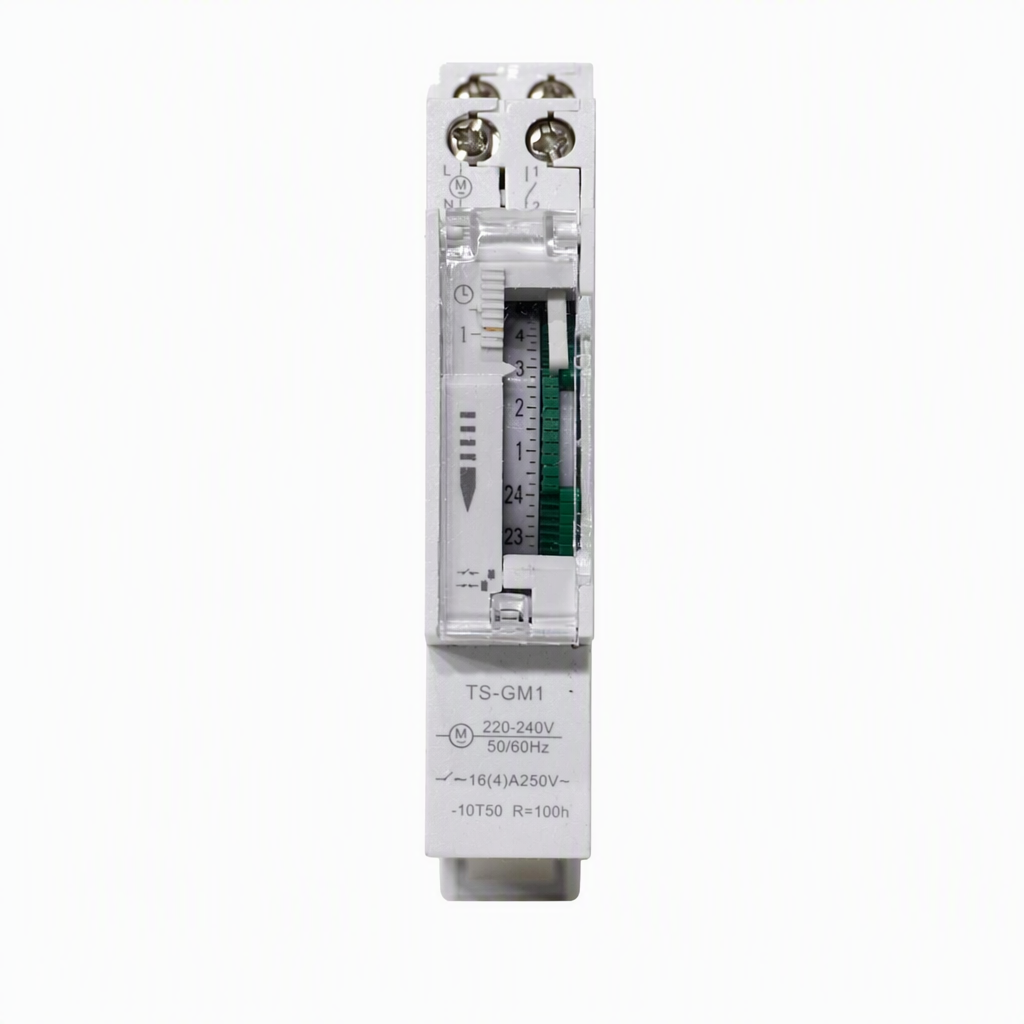

TS-GM1 DIN Rail Mechanical Timer Switch Product Description
TS-GM1 is a Soyang DIN rail-mounted mechanical time switch. It features a transparent cover, analog time dial and manual control lever, making it simple to set timed switching operations for lighting, signage, water pumps and other loads.
- Overview
- Recommended Products
1. Mechanical 24-hour time setting. Use the dial to set ON/OFF segments within a 24-hour cycle. Simple, intuitive operation without complex programming.
2. Standard 35mm DIN rail mounting. Compact modular design, easy to clip into distribution boxes or control cabinets.
3. Manual override lever. Allows direct ON/OFF control of the output for testing or temporary operation.
4. Transparent protective cover. Helps protect the dial and internal components from dust and accidental tampering.
5. Relay contact output. Suitable for controlling lighting, signage, small motors, pumps and other loads within the rated capacity.
| Item | Parameter |
|---|---|
| Model | TS-GM1 |
| Operating Voltage | 220–240V~ 50/60Hz |
| Contact Rating | 16(4)A 250V~ |
| Timing Range | 24-hour cycle |
| Time Setting | Mechanical analog dial |
| Output | Relay contact |
| Mounting | 35mm DIN rail |
| Display | Analog time scale |
| Manual Control | Manual lever override |
| Certification | CE |
| Environment | Indoor dry distribution box only |
Building lighting: Corridor lights, stairwell lights and common area lighting.
Signage control: Shop front lights, advertising boards and display lighting.
Water pumps: Small circulation pumps, booster pumps and timing control systems.
Industrial equipment: Timed power switching for machines and auxiliary equipment.
Agriculture & breeding: Timed ventilation and small load control in greenhouses or breeding rooms.
1. This is a DIN rail mechanical time switch, not a plug-in timer. It requires hardwired installation by a qualified electrician.
2. Do not exceed the rated contact capacity of 16(4)A. For high-power or motor loads, use the timer to control an external contactor.
3. The relay provides timing switching only. It does not offer overcurrent, short-circuit or leakage protection. A circuit breaker must be installed upstream.
4. Suitable for dry indoor distribution boxes only. Do not expose to rain, moisture or outdoor weather directly.
5. Always disconnect the main power supply before wiring. Installation must be performed by a qualified electrician.
6. Incorrect wiring may cause damage or malfunction. Check the terminal diagram before connection.
Wipe the transparent cover and housing with a dry soft cloth. Do not use wet cloth, alcohol or solvent cleaners.
Do not disassemble the unit. Unauthorized disassembly may cause electric shock and will invalidate certification. If the timer fails, stop using it immediately and disconnect the upstream power.
Q: Will my settings be lost after a power failure?
A: Mechanical timers do not rely on a backup battery for timekeeping, but you should recheck the time dial and switch position after a long power interruption.
Q: Can I control a large motor directly?
A: It is not recommended. Motor starting current is high. Use this timer to drive an external contactor, then connect the motor to the contactor.
Q: How do I set the time?
A: Rotate the analog dial to the current time, then set the required ON/OFF segments. Use the manual lever if you need to force output ON or OFF temporarily.
Q: Can I install it outdoors?
A: No. The unit itself is not waterproof. It must be installed in a dry indoor distribution box. If used outdoors, the enclosure must provide adequate IP protection and remain dry.
