TS-ED1 DE Digital Timer Socket Product Description
TS-ED1 is a Soyang DE Schuko digital timer socket with 7-day weekly programmable timer. It automatically manages power supply for appliances to save energy and realize simple home automation indoors.
- Overview
- Recommended Products
1. 7-day weekly cycle timer. Supports up to 20 independent ON/OFF programs. Schedules can run on single day, multiple selected days or repeat the whole week.
2. RANDOM vacation security mode: Randomly switches power on/off within your set time window. It mimics human activity by turning lights on and off intermittently for burglary deterrence when you are away.
3. LCD display and 8-button control panel for quick setup of weekday, hour and minute. Built-in 1.2V Ni-MH rechargeable battery. Time and timer schedules are retained during short power outages; no need to reset every time power resumes.
4. Manual/Auto mode switch. You can manually force output ON or OFF anytime without erasing saved timer settings.

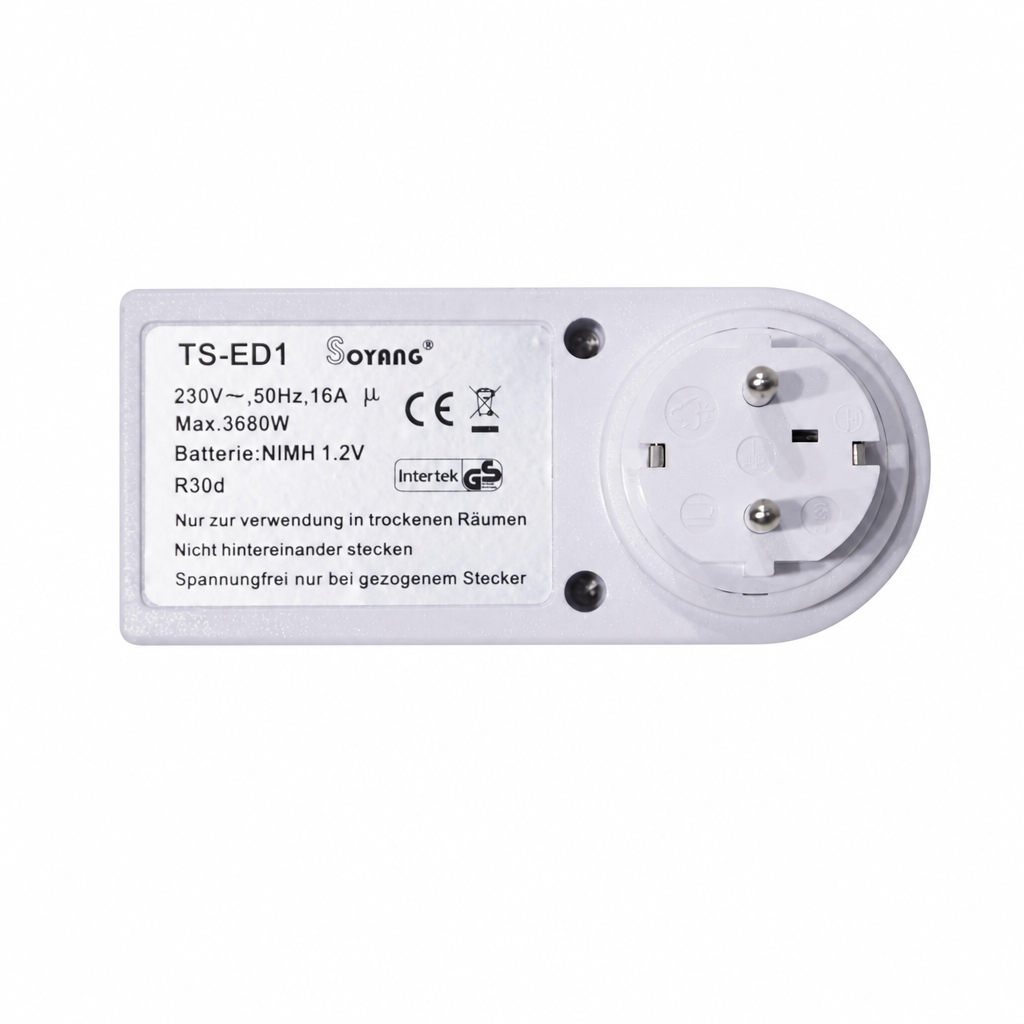

5. DE Schuko plug, rated 16A, max load 3680W.
| Item | Parameter |
|---|---|
| Model | TS-ED1 |
| Rated Voltage | 230V~ 50Hz |
| Max Current | 16A |
| Max Power | 3680W |
| Built-in Battery | Ni-MH 1.2V rechargeable battery |
| Socket Standard | DE Schuko |
| Application Environment | Indoor dry location only |
| Certifications | CE, Intertek |
| Timer Cycle | 7-day weekly cycle, up to 20 ON/OFF programs |
Home lighting: Timed switch for hallway & floor lamps. Random mode ideal for anti-burglary during holidays.
Gardening & pet care: Timed power for plant grow lights, aquarium pumps, reptile heating mats.
Small household appliances: Fans, humidifiers, chargers and small water heaters. Auto cut-off prevents continuous standby power waste.
Commercial use: Window display lights, advertising lamps and demo equipment timing control.
1. For dry indoor use only. Not for bathrooms, outdoor wet areas. Never immerse in water.
2. Do not daisy-chain. Do not plug this timer into another timer socket.
3. Total connected load must not exceed 3680W. Do not connect high-power heating devices beyond rating.
4. The plug side remains live even when output is off. Only unplug it for full disconnection from mains.
5. This product is only for timing control. It has no earth leakage protection and cannot replace an RCD.
6. Keep away from unsupervised children. Do not open the housing.
Wipe dust with dry soft cloth. Do NOT use wet cloth, alcohol or solvent cleaners.
The built-in Ni-MH battery will degrade over years. Saved schedules may be lost once battery drains after long storage. Do not disassemble. Unauthorized opening causes electric shock hazard and invalidates certifications. No user-serviceable parts inside. Stop using immediately if faulty.
Q: Will timer settings be lost after power failure?
A: Built-in rechargeable battery keeps time & schedules for short blackouts. If left unplugged for a very long time and battery drains completely, settings will reset.
Q: What is RANDOM mode for?
A: It randomly toggles power ON/OFF within the preset period. Lights turn on intermittently to simulate occupancy for holiday security.
Q: Can I connect electric heaters?
A: Total power must stay under 3680W. For inductive loads (motors), check rated current and ensure it is within specification.
Q: Blank screen / no display?
A: Plug into mains to recharge the internal battery. If screen still stays dark after charging, the unit is faulty. Discontinue use.
