TS-MNN201 Mechanical 24h Plug-in Timer Product Description

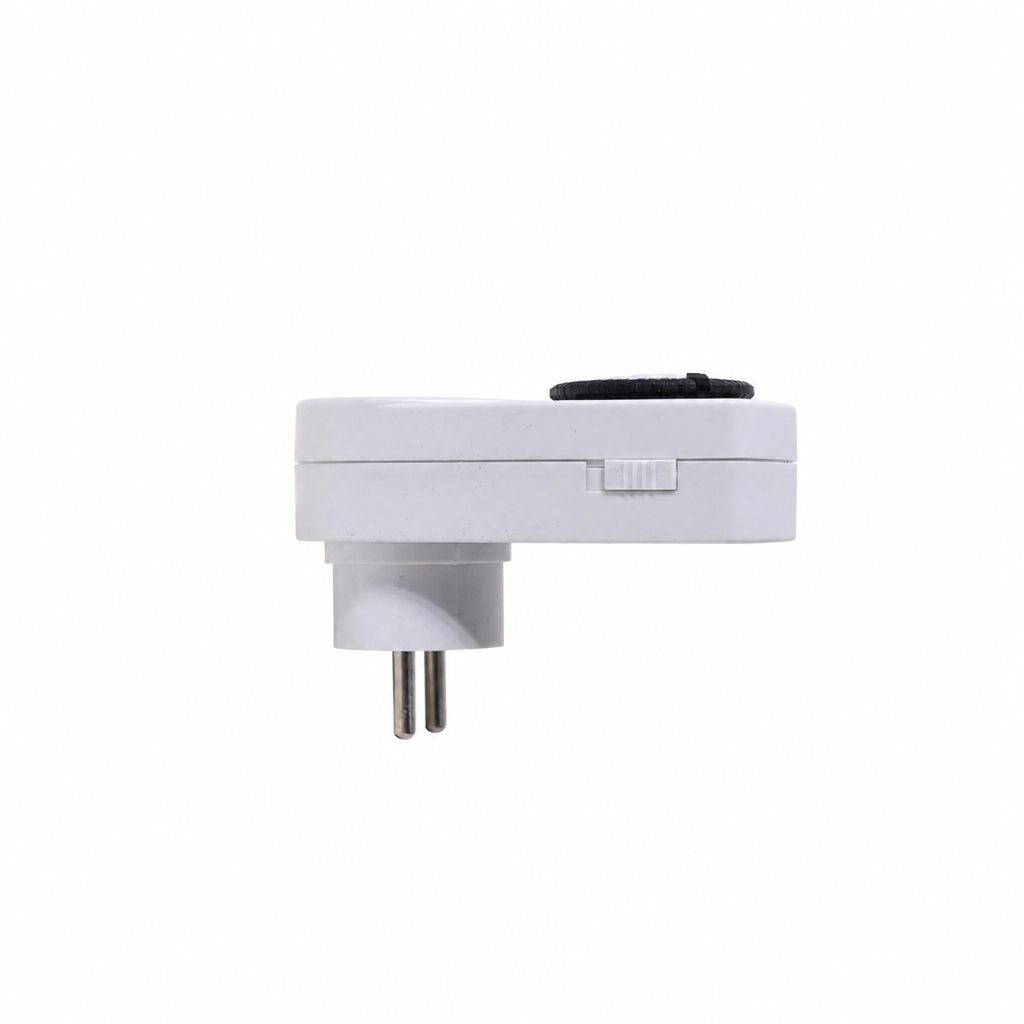

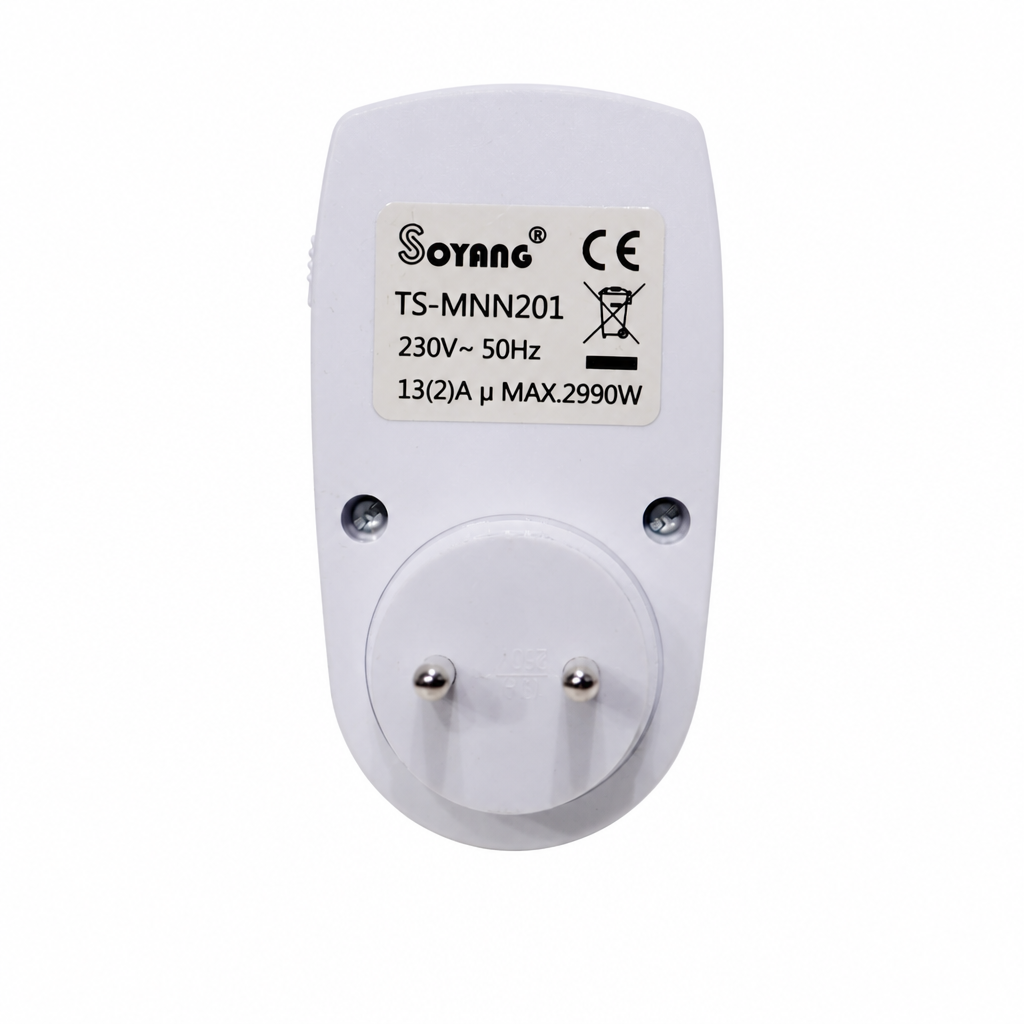

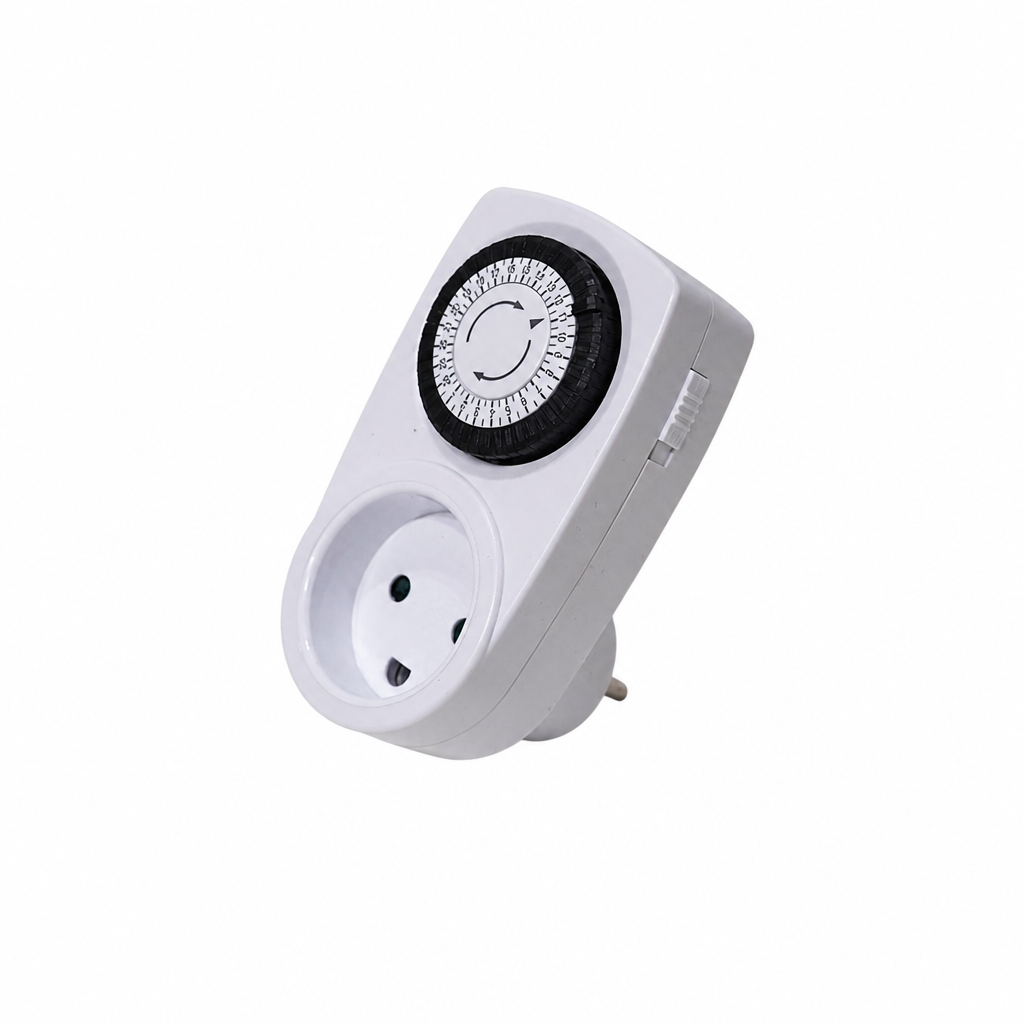

TS-MNN201 is Soyang’s 24-hour cyclic mechanical plug timer with European 2-pin round plug. It adopts simple white curved housing fitted with a black timing rotary dial. Slide the tabs to set daily repeating ON/OFF cycles. Fully mechanical and battery-free, easy operation for indoor appliance timing control.
- Overview
- Recommended Products
1. 24-hour cyclic mechanical timer. Rotate the black dial and slide the tabs to set daily repeating switching programmes. No battery required.
2. European 2-pin round plug with integrated socket, plug-and-play, no wiring needed.
3. Rated 13(2)A, Max.2990W, 230V~,50Hz. CE certified, compliant with European safety standards.
| Item | Parameter |
|---|---|
| Model | TS-MNN201 |
| Supply Voltage | 230V~, 50Hz |
| Contact Rating | 13(2)A, Max.2990W |
| Timer Type | Mechanical 24-hour repeating cycle |
| Plug Standard | European 2 round pins |
| Protection Class | N/A (Dry indoor use only) |
| Certifications | CE |
| Environment | Dry indoor locations |
Table lamps, floor lamps and indoor decorative lighting
Aquarium lights and small aquarium equipment
Electric fans, humidifiers and battery charger
Indoor festive string lights
1. For dry indoor use only. Not waterproof. Keep away from splashes and humid areas.
2. Do not exceed maximum load of 2990W. Check the power rating of connected appliances before use.
3. No backup battery. Timer dial stops when mains power fails. Reset time manually after power recovery.
4. Do not daisy-chain timers. Never plug one timer into another timer socket.
5. Unplug the timer before cleaning. Wipe casing with dry cloth. Do not spray liquid directly onto the unit.
6. No built-in overcurrent protection. Unplug the timer right away if the connected appliance malfunctions.
Clean only with dry or slightly damp soft cloth. Do not use alcohol, solvents or abrasive cleaners.
Regularly inspect plug, socket and housing. Stop using if cracks or damaged contacts are found.
Q: Will it keep timing during power outages?
A: No. It runs on mains power only. The dial stops when power cuts out, manual time reset is required after power returns.
Q: Can this timer be used outdoors in the garden?
A: No. It has no splash protection, only suitable for dry indoor use.
Q: How to set the time with the tabs?
A: Pull the tab outward = power ON; push tab back = power OFF. Adjust tabs as required for daily automatic cycles.
