TS-ME1 Mechanical 24h Plug-in Timer Product Description
TS-ME1 is Soyang’s 24-hour repeating mechanical plug timer with UK BS1363/A standard. It adopts a rotary dial with sliding tabs for setting daily automatic ON/OFF cycles. It comes with red power indicator lamp and manual override switch. Battery-free mechanical design, plug-and-play for indoor time control for UK market.
- Overview
- Recommended Products

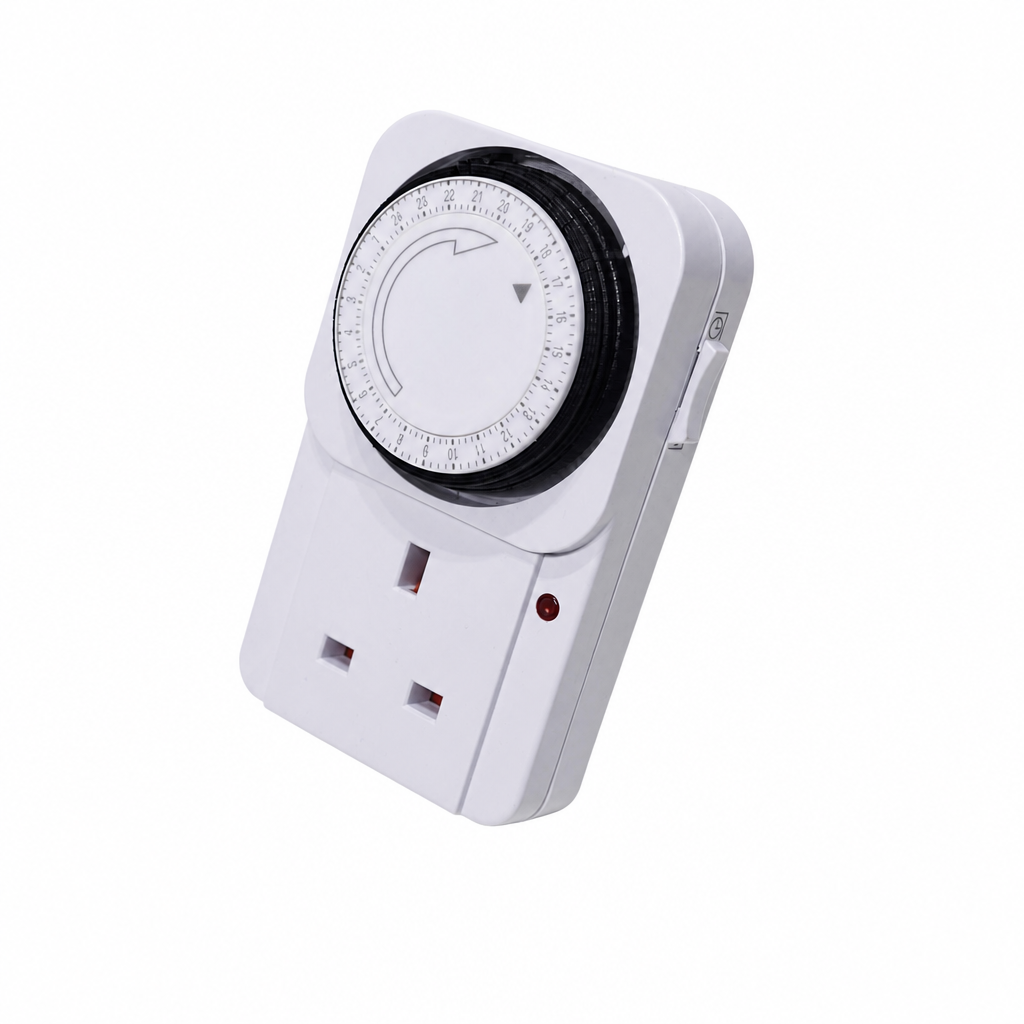

1. 24-hour cyclic mechanical timer. Slide black tabs on rotary dial to set recurring daily switching schedules. No battery required.
2. Red LED power indicator for visual power status check.

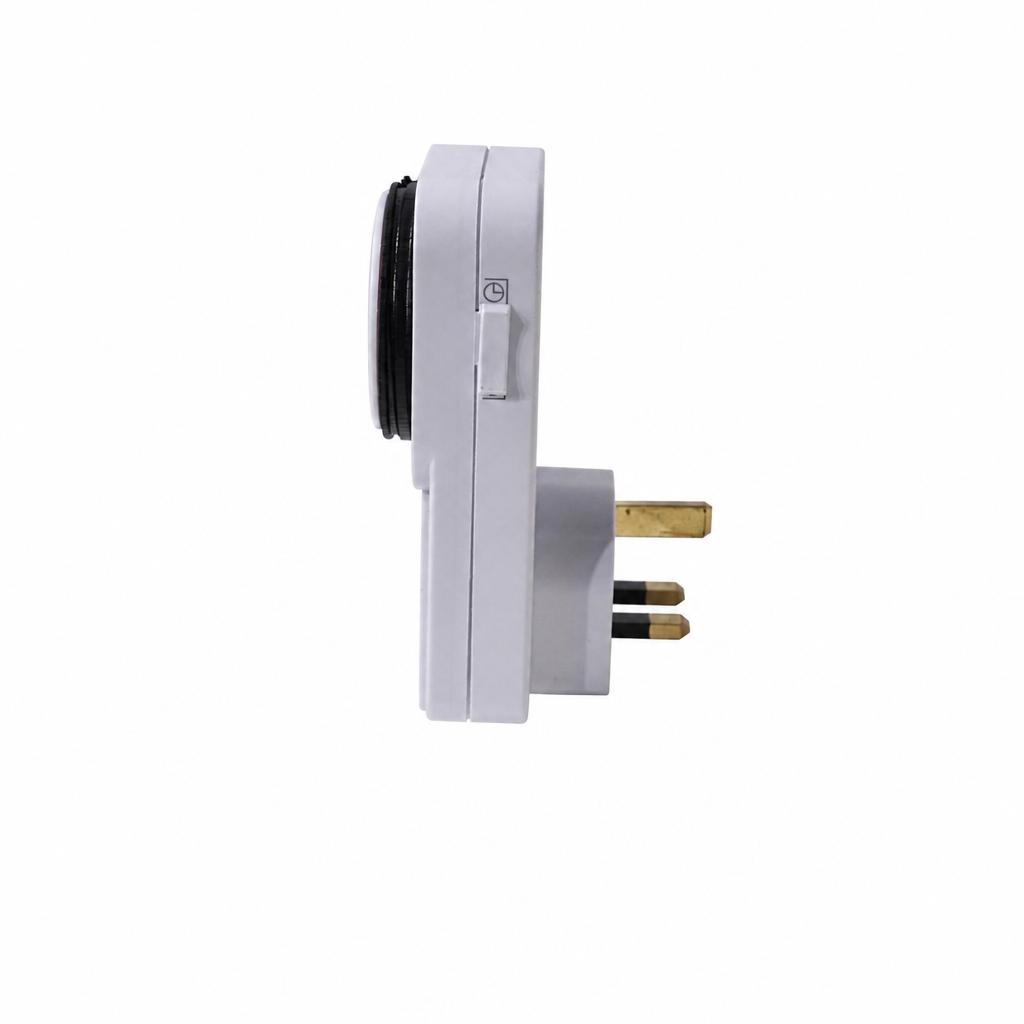

3. Manual override switch: can bypass timer programming to keep socket permanently powered.

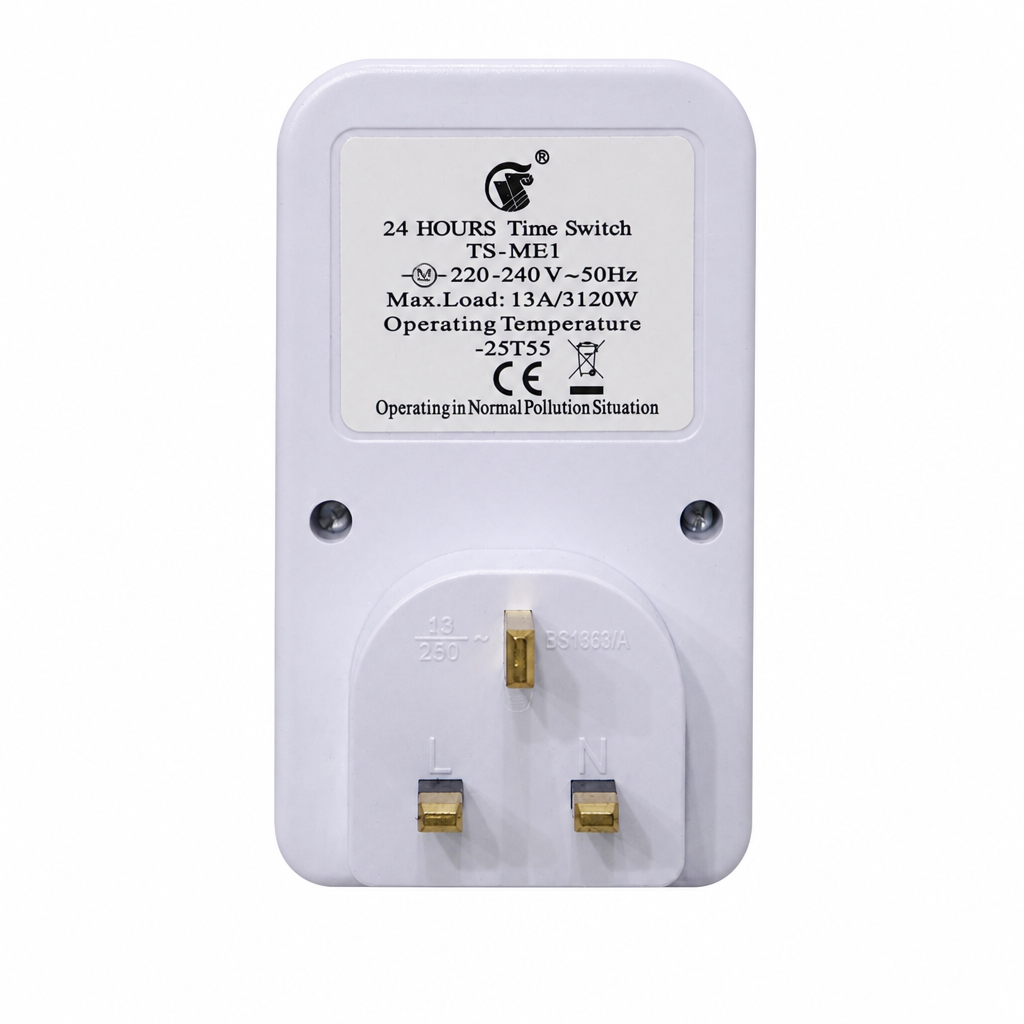

4. UK BS1363/A 3-pin plug & socket, plug & play, no wiring needed.
5. Rated 13A, Max.3120W, 220–240V~,50Hz. CE certified, meets UK safety requirements.
| Item | Parameter |
|---|---|
| Model | TS-ME1 |
| Supply Voltage | 220–240V~, 50Hz |
| Contact Rating | 13A, Max.3120W |
| Timer Type | Mechanical 24-hour repeating cycle |
| Plug Standard | UK BS1363/A |
| Indicator | Red power LED |
| Manual Control | Manual override switch |
| Certifications | CE |
| Operating Temperature | -25℃ ~ +55℃ |
| Environment | Indoor dry rooms only |
Indoor table lamps, floor lights and decorative lighting
Aquarium lights and small aquarium equipment
Electric fans, humidifiers and battery chargers
Indoor Christmas lights and seasonal decorations
1. For dry indoor use only. Not waterproof. Keep away from splashing water and humid environments.
2. Do not exceed the maximum load of 3120W. Check the power rating of connected appliances before use.
3. No backup battery. Timer dial stops when mains power fails; reset current time manually once power recovers.
4. Do not daisy-chain timers. Never plug one timer into another timer’s socket.
5. Unplug timer from mains before cleaning. Wipe housing with dry cloth. Do not spray liquid directly onto the unit.
6. No built-in overcurrent protection. Unplug the timer immediately if the connected appliance operates abnormally.
Clean only with dry soft cloth. Do not use alcohol, solvents or abrasive cleaners.
Regularly inspect plug, socket and casing. Stop using if cracks, burn marks or loose contacts appear.
Q: Does the timer keep time during power outages?
A: No. It runs entirely on mains supply. The dial stops if power cuts out, manual reset is required after power restoration.
Q: What is the manual override switch for?
A: It can switch the socket to constant ON mode, ignoring the preset timer schedule.
Q: Can this timer be used outdoors?
A: No. It has no splash-proof rating and is designed exclusively for dry indoor locations.
