TS-MF202 Mechanical 24h Plug-in Timer Product Description

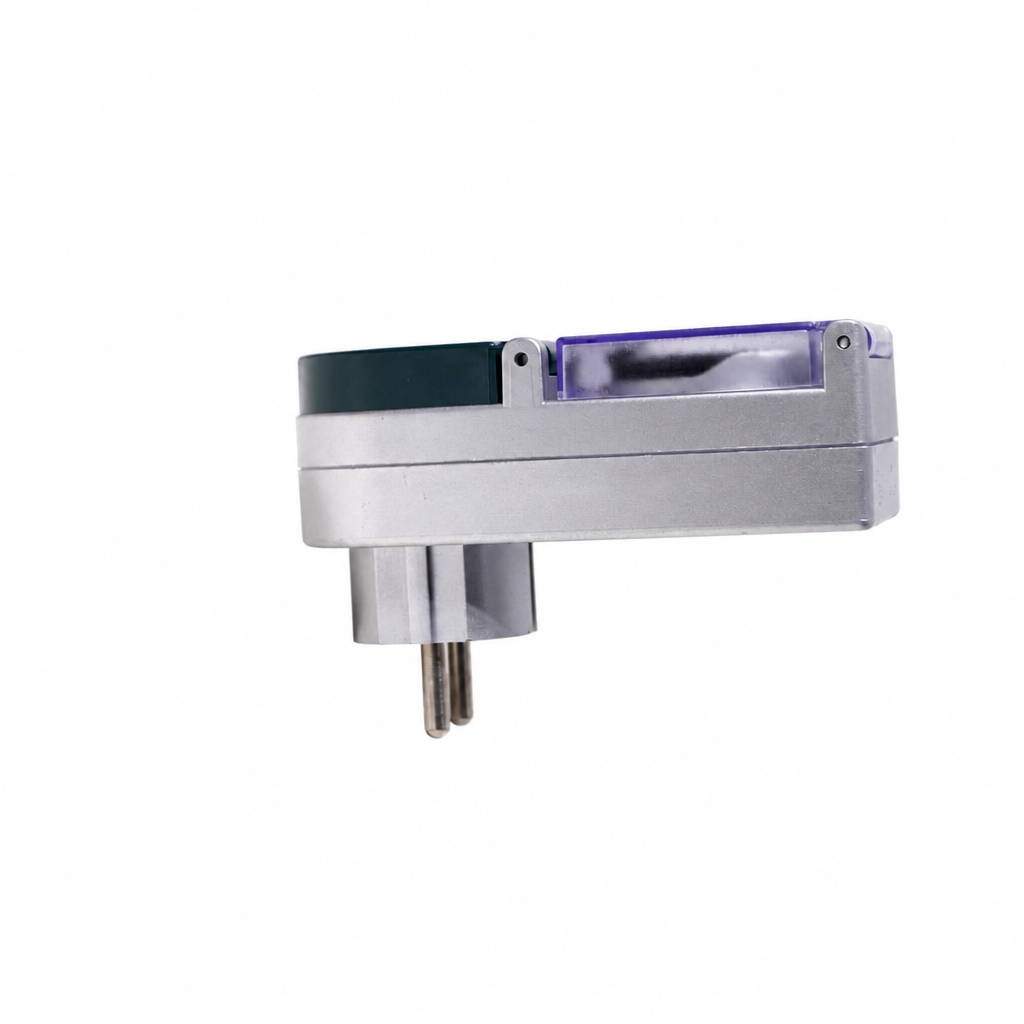

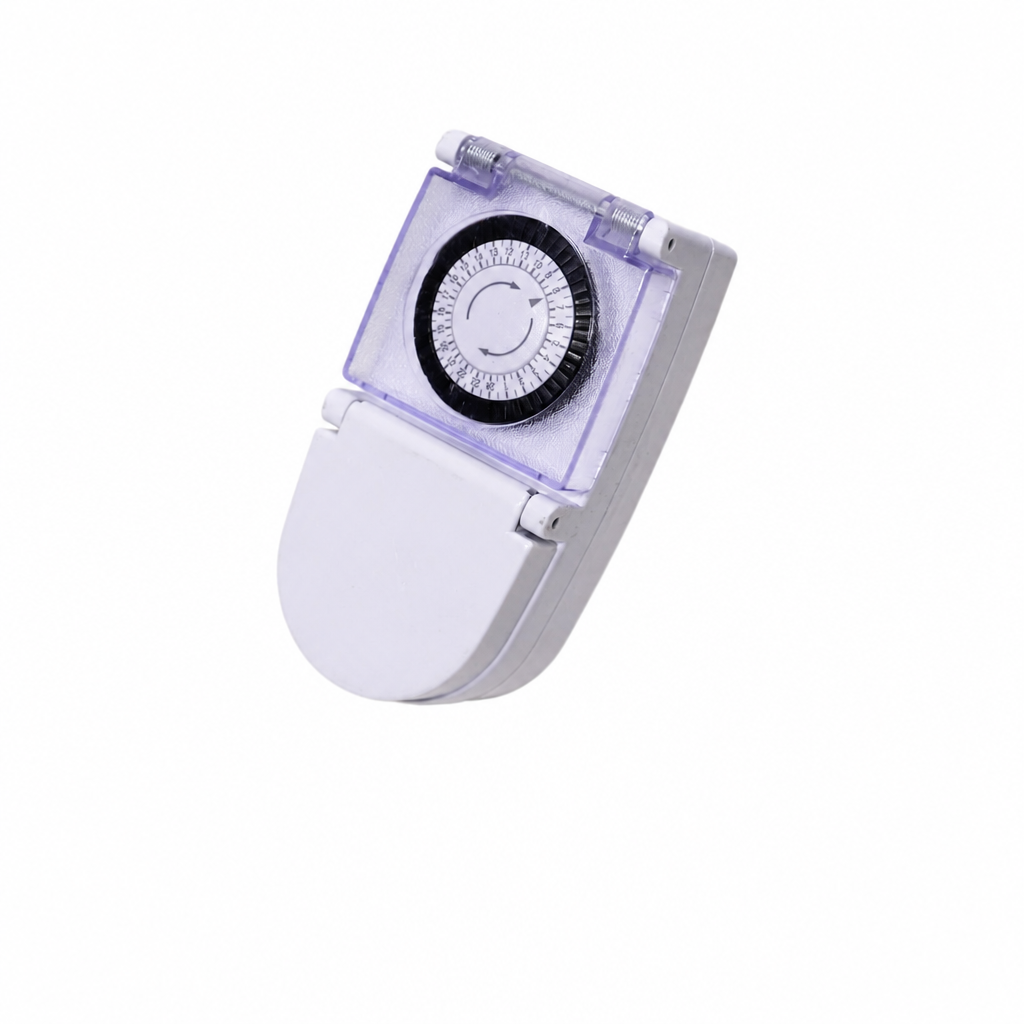

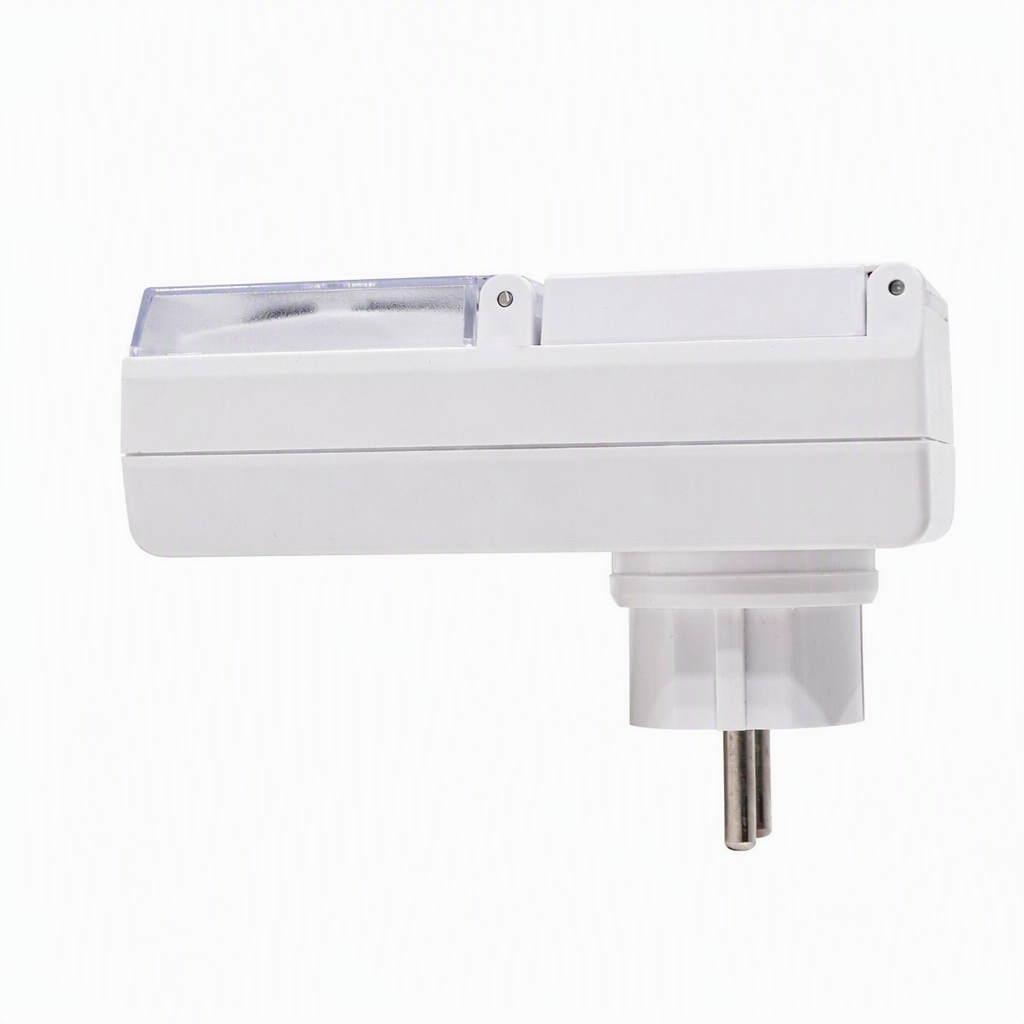

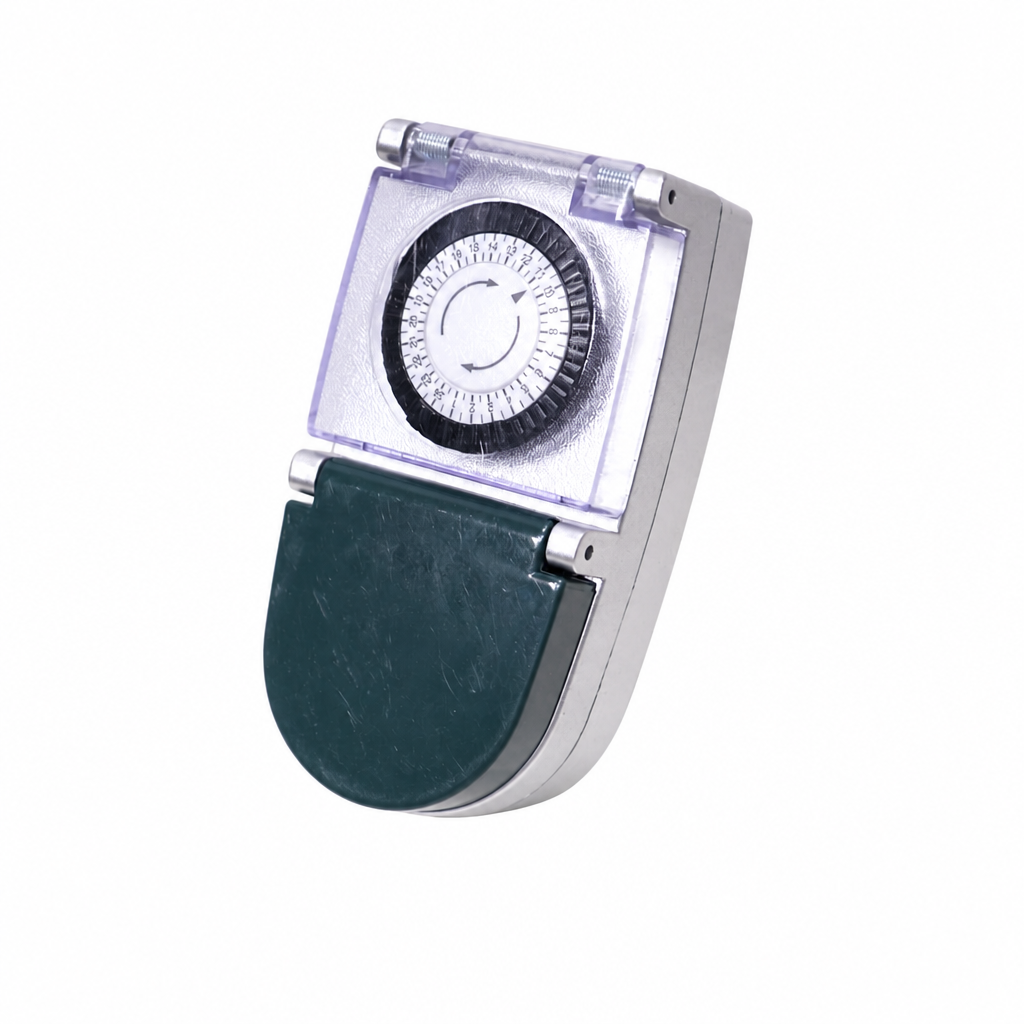

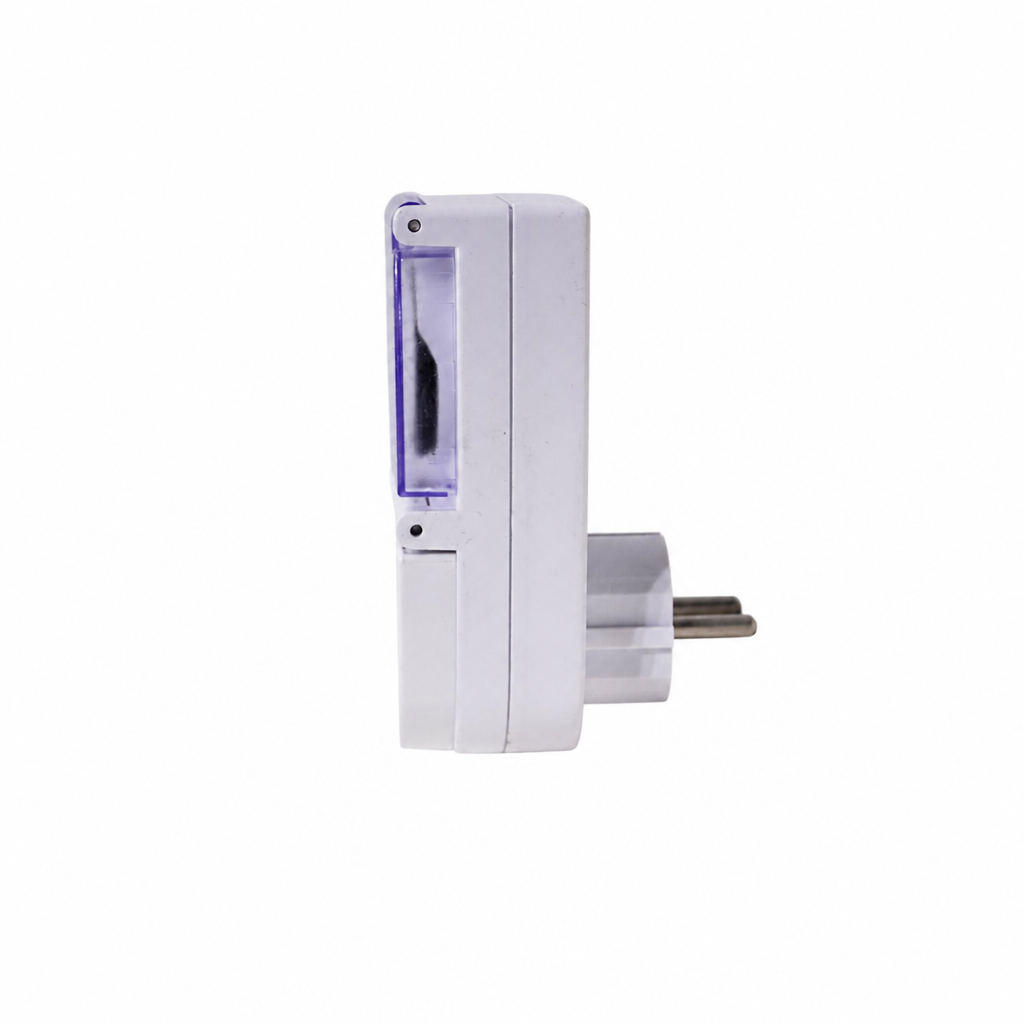

TS-MF202 is Soyang’s IP44 splash-proof 24-hour cyclic mechanical plug timer complying with EU Schuko standard. It features teardrop-shaped housing with double hinged lids. The white lid protects the socket opening and the transparent cover shields the timing dial. Slide the tabs on rotary wheel to set daily recurring ON/OFF cycles. Fully mechanical, battery-free. Suitable for sheltered outdoor garden applications.
- Overview
- Recommended Products
1. 24-hour cyclic mechanical timer. Adjust black sliding tabs on rotary dial to create daily repeating switching programmes. No battery required.
2. IP44 splash protection rating. Double hinged protective covers safeguard socket and timing dial against splashes and dust. Both lids must stay closed to retain splash-proof performance.

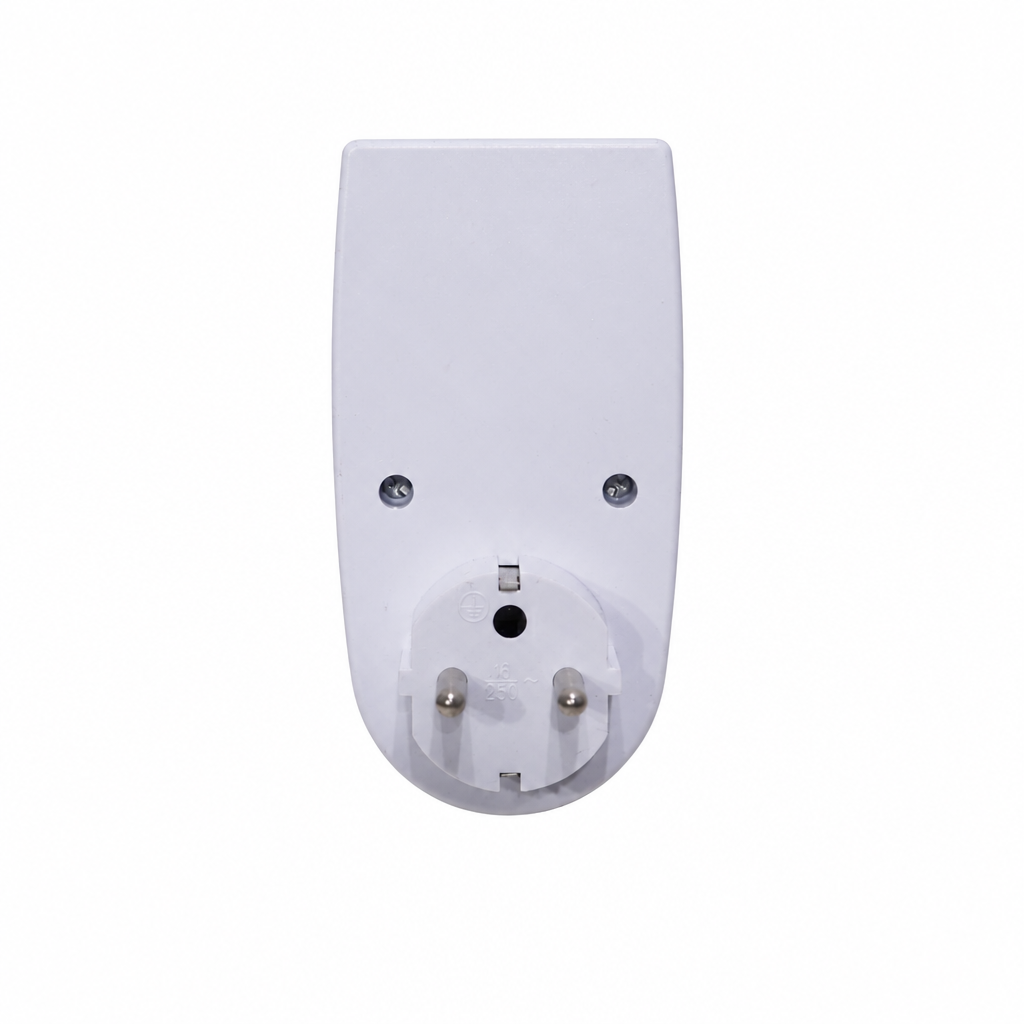

3. EU Schuko plug & integrated socket, plug-and-play, no wiring required.

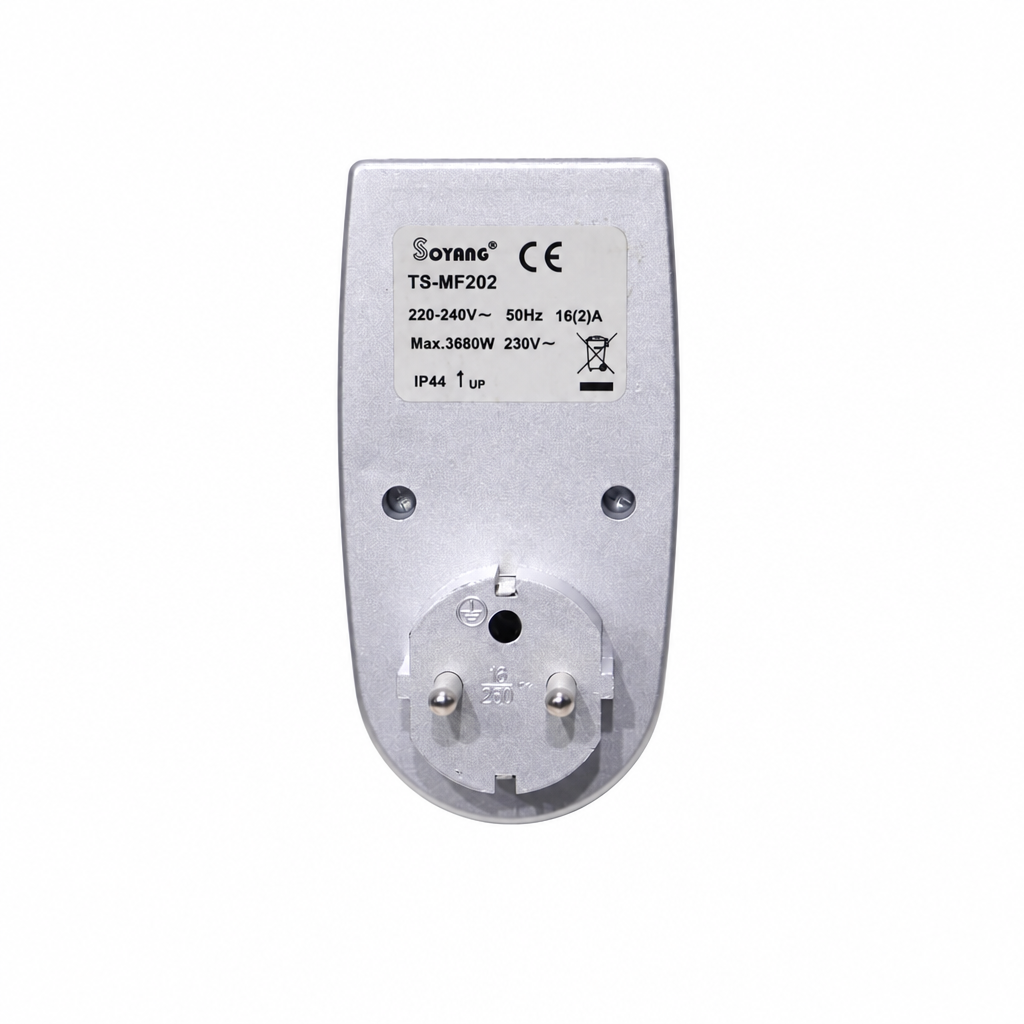

4. Rated 16(2)A, Max.3680W, 220-240V~,50Hz. CE certified, compliant with European safety standards.
| Item | Parameter |
|---|---|
| Model | TS-MF202 |
| Supply Voltage | 220-240V~, 50Hz |
| Contact Rating | 16(2)A, Max.3680W |
| Timer Type | Mechanical 24-hour repeating cycle |
| Plug Standard | Schuko (EU) |
| Protection Class | IP44 (Splash protected) |
| Certifications | CE |
| Environment | Sheltered outdoor/garden locations; also usable indoors |
Garden lights, patio lamps, landscape lighting
Pond pumps, fountain and water feature equipment
Greenhouse fans & grow lights
Outdoor festive string lights under eaves
1. IP44 means splash-resistant ONLY. It cannot withstand continuous heavy rain or submersion. Must be installed under eaves or other sheltered areas.
2. Do not exceed maximum load of 3680W. Verify the appliance power rating before connection.
3. No backup battery. Timer dial stops when mains power fails. Reset the time manually after power recovery.
4. Do not daisy-chain timers. Never plug one timer into another timer socket.
5. Both protective lids must remain closed during outdoor operation to maintain IP44 splash protection.
6. Unplug before cleaning. Wipe casing with dry cloth. Do not spray liquid directly onto the timer.
7. No built-in overcurrent protection. Unplug the timer immediately if connected appliance malfunctions.
Clean only with dry or slightly damp soft cloth. Do not use alcohol, solvents or abrasive cleaners.
Check housing, seals and covers regularly. Stop using if cracks or damaged seals are found.
Q: Can it keep timing during power outages?
A: No. It runs on mains power only. The dial stops when power cuts out. Manual time reset is required once power returns.
Q: Can it be exposed directly to rain?
A: No. IP44 protects only against splashing water. It must be used in sheltered outdoor spaces.
Q: What are the two lids for?

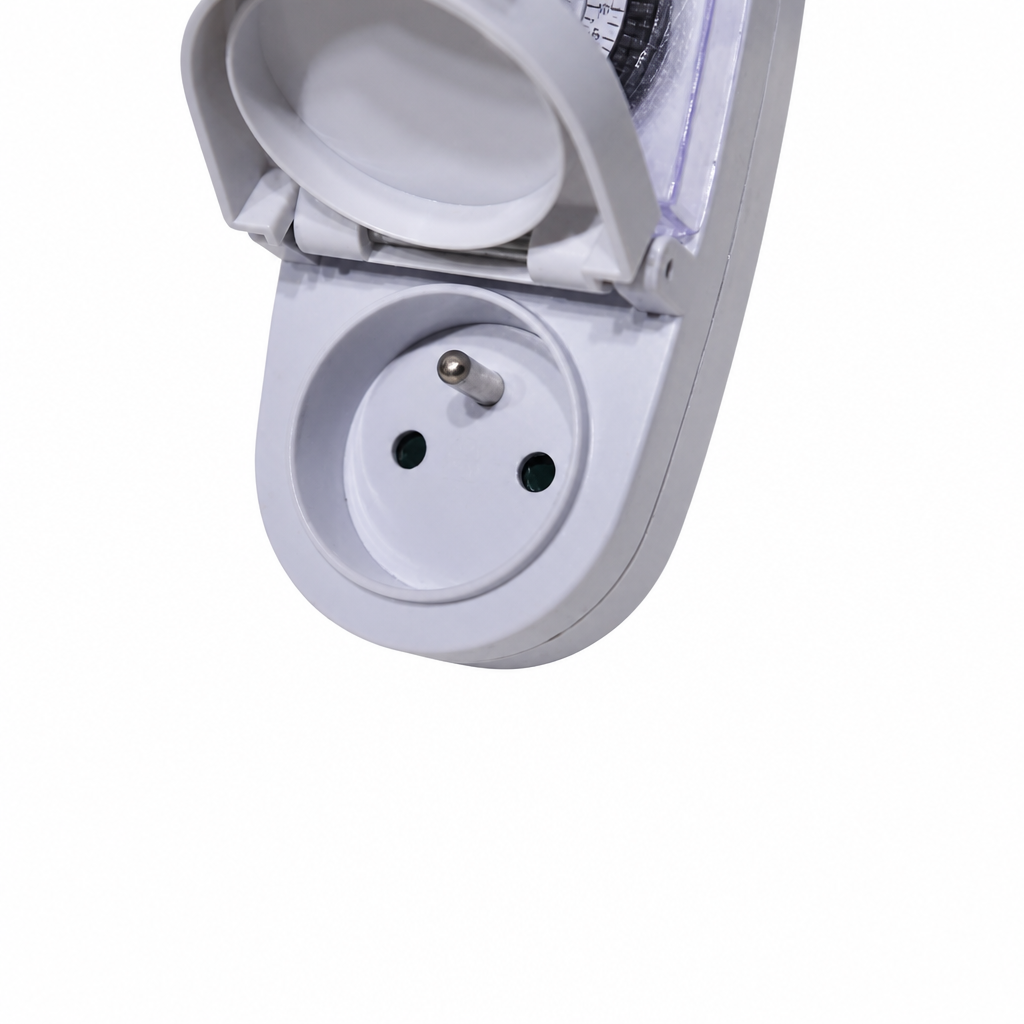

A: The white hinged lid covers the socket outlet, and the transparent cover protects the timing dial. Both lids should be closed to maintain splash resistance.
