TS-ED201-16 DE Digital Timer Socket Product Description
TS-ED201-16 is a Soyang DE Schuko digital timer socket with streamlined curved housing. It is equipped with LCD screen and supports 7-day weekly programmable timer. Multiple automatic ON/OFF schedules can be programmed to turn appliances on and off automatically, save energy and realize simple home automation.
- Overview
- Recommended Products
1. 7-day weekly cycle timer. Supports up to 20 independent ON/OFF programs. Schedules can run on single day, selected multiple days or repeat the whole week. Built-in RANDOM anti-burglary mode. It randomly switches lights on and off during your set period to simulate occupancy and deter intruders while you are on holiday.

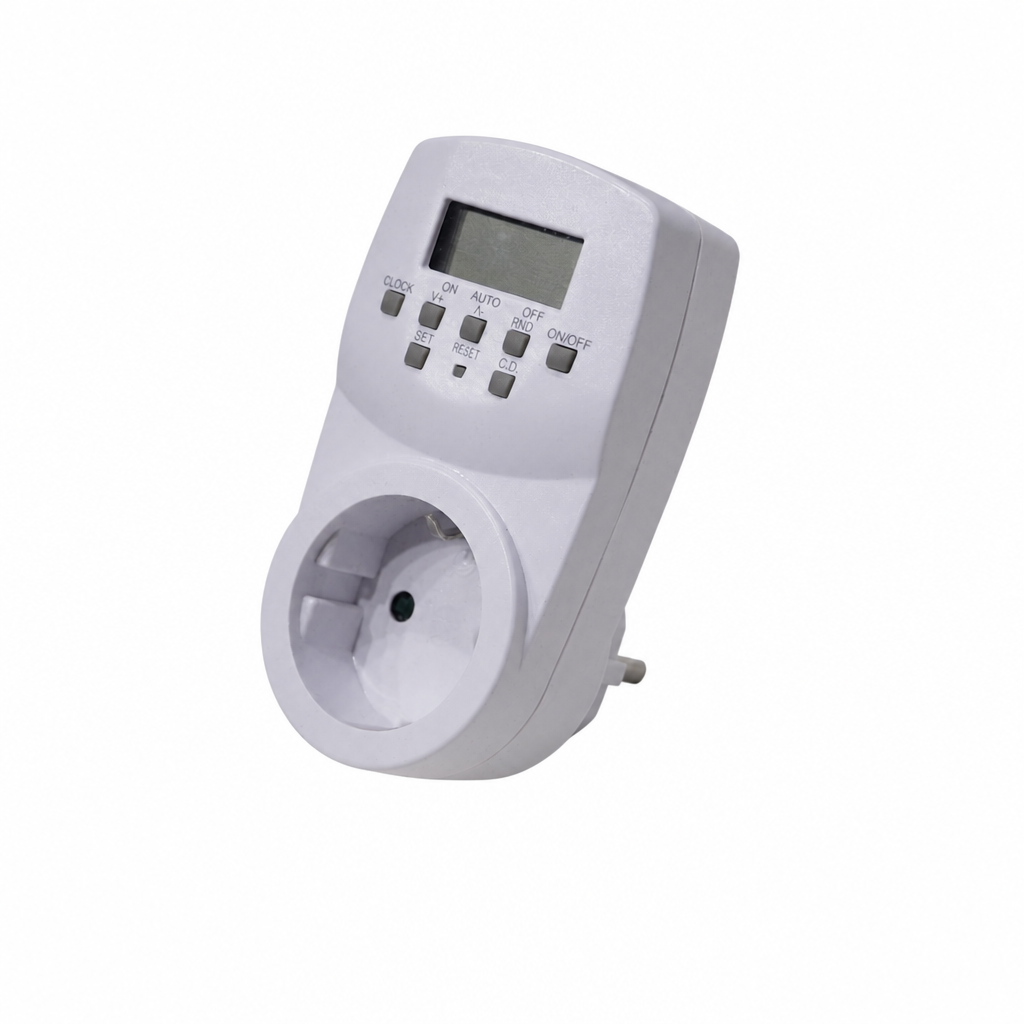

2. LCD display with button panel: CLOCK, V+, V-, SET, RESET, ON, AUTO, OFF, RND, C.D., ON/OFF. Simple and intuitive programming.
3. Built-in 1.2V Ni-MH rechargeable battery. Time and saved timer schedules are retained during brief power outages; no need to reset settings once power comes back.
4. Manual / Auto mode switch. You can manually force the output ON or OFF anytime. Manual override will not erase stored timer programs.

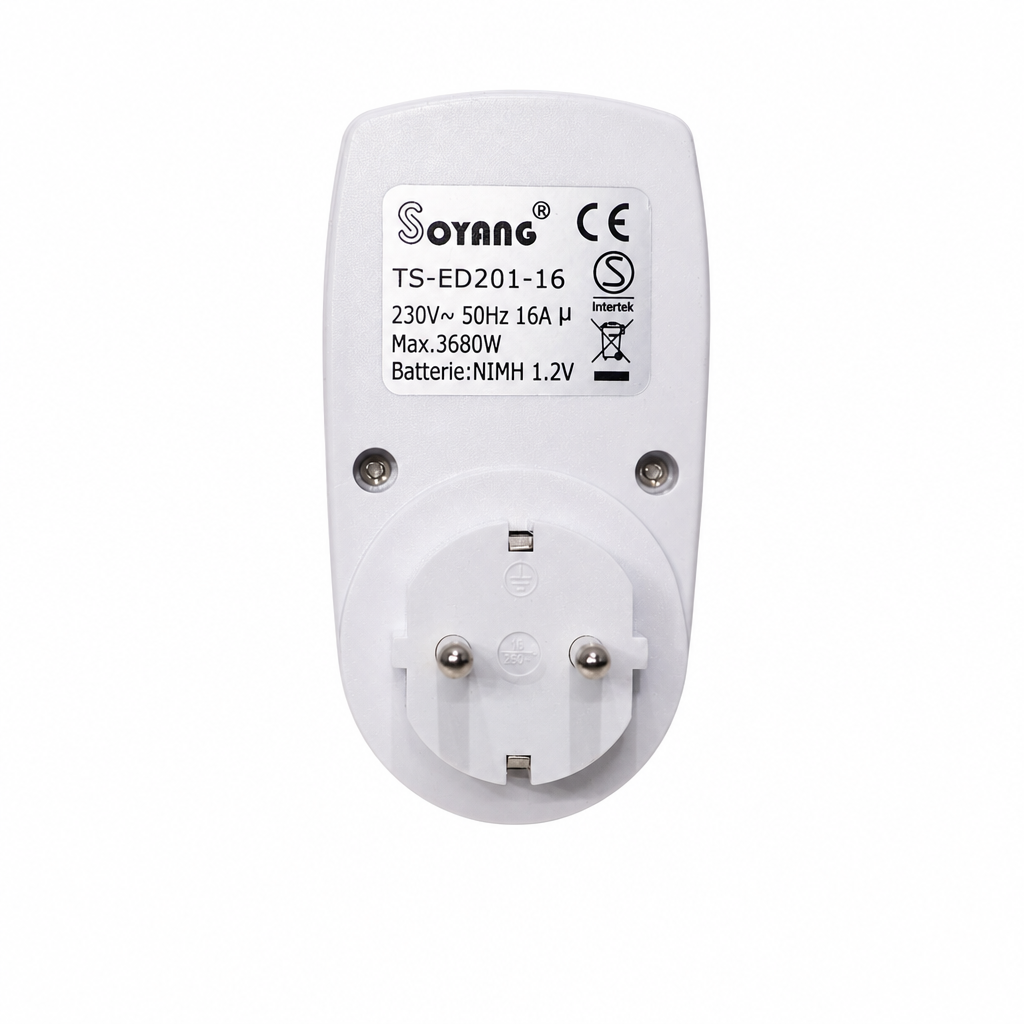

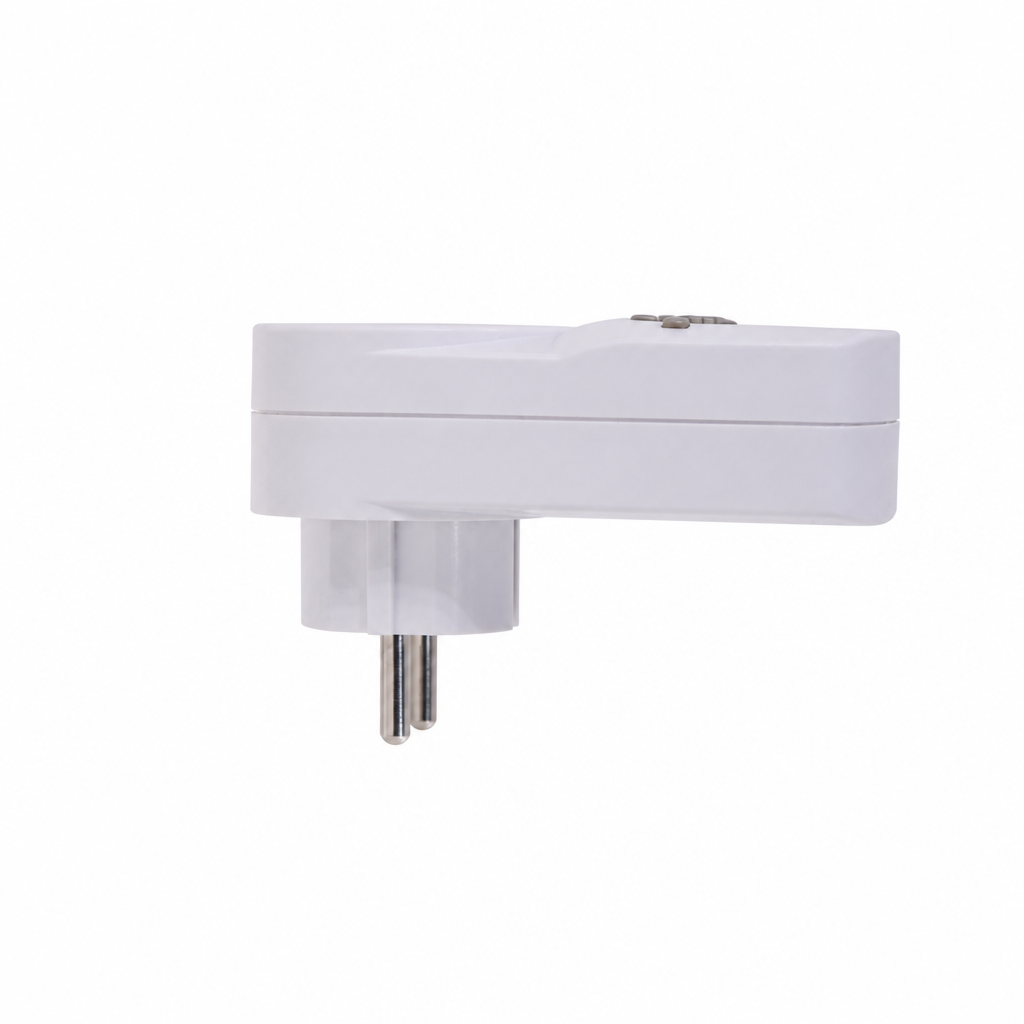

5. DE Schuko plug, rated 16A, max load 3680W. Elegant curved shape, plug & play.
| Item | Parameter |
|---|---|
| Model | TS-ED201-16 |
| Rated Voltage | 230V~ 50Hz |
| Max Current | 16A |
| Max Power | 3680W |
| Built-in Battery | Ni-MH 1.2V rechargeable battery |
| Socket Standard | DE Schuko |
| Application Environment | Indoor dry location only |
| Certifications | CE, Intertek |
| Timer Cycle | 7-day weekly cycle, up to 20 ON/OFF programs |
Home lighting: Timed control for hallway lamps and floor lamps. RND random mode is perfect for holiday anti-theft simulation.
Gardening & pet care: Timed power supply for plant grow lights, aquarium pumps, reptile heating mats.
Small household appliances: Fans, humidifiers, chargers and small water heaters to cut standby power waste.
Commercial use: Timing control for shop window lights, advertising lamps and demo equipment.
1. For dry indoor use only. Not for bathrooms, outdoor wet areas. Never immerse in water.
2. Do not daisy-chain. Do not plug this timer socket into another timer.
3. Total connected load must not exceed 3680W. Do not connect high-power heating devices beyond rating.
4. The plug side remains live even when output is off. Only unplug it for full disconnection from mains.
5. This product is only for timing control. It has no residual current protection and cannot replace an RCD.
6. Keep children under adult supervision. Do not open the housing.
Wipe dust with dry soft cloth. Do NOT use wet cloth, alcohol or solvent cleaners.
The built-in Ni-MH battery degrades over time. Saved schedules may be lost once battery drains completely after long unplugged storage. Do not disassemble. Unauthorized opening causes electric shock hazard and invalidates certifications. No user-serviceable parts inside. Stop using immediately if faulty.
Q: Will timer settings be lost after power failure?
A: Built-in rechargeable battery keeps time & schedules for short blackouts. If left unplugged for a very long time and battery drains completely, settings will reset.
Q: What is RND random mode?
A: It randomly toggles power ON/OFF in preset time window. Lights turn on intermittently to simulate occupied house for vacation security.
Q: Can I connect electric heaters?
A: Total power must stay under 3680W. For inductive motor loads, verify rated current is within specification.
Q: Blank screen / no display?
A: Plug into mains to recharge the internal battery. If screen still stays dark after charging, the unit is faulty. Discontinue use.
