TS-MF3 Mechanical 24h Plug-in Timer Product Description
TS-MF3 is Soyang’s 24-hour cyclic mechanical plug timer with EU Schuko standard. It features a rounded rectangular housing, large rotary timing dial and red power indicator lamp. Push/pull the tabs on the dial to set repeating daily ON/OFF schedules. Fully mechanical with no battery required, simple and reliable for indoor time control.
- Overview
- Recommended Products
1. 24-hour cyclic mechanical timer. Adjust sliding tabs on rotary dial to set daily recurring switching programs. No battery needed.
2. Red indicator light to show power-on status.
3. EU Schuko plug and socket design, plug-and-play, no wiring required.

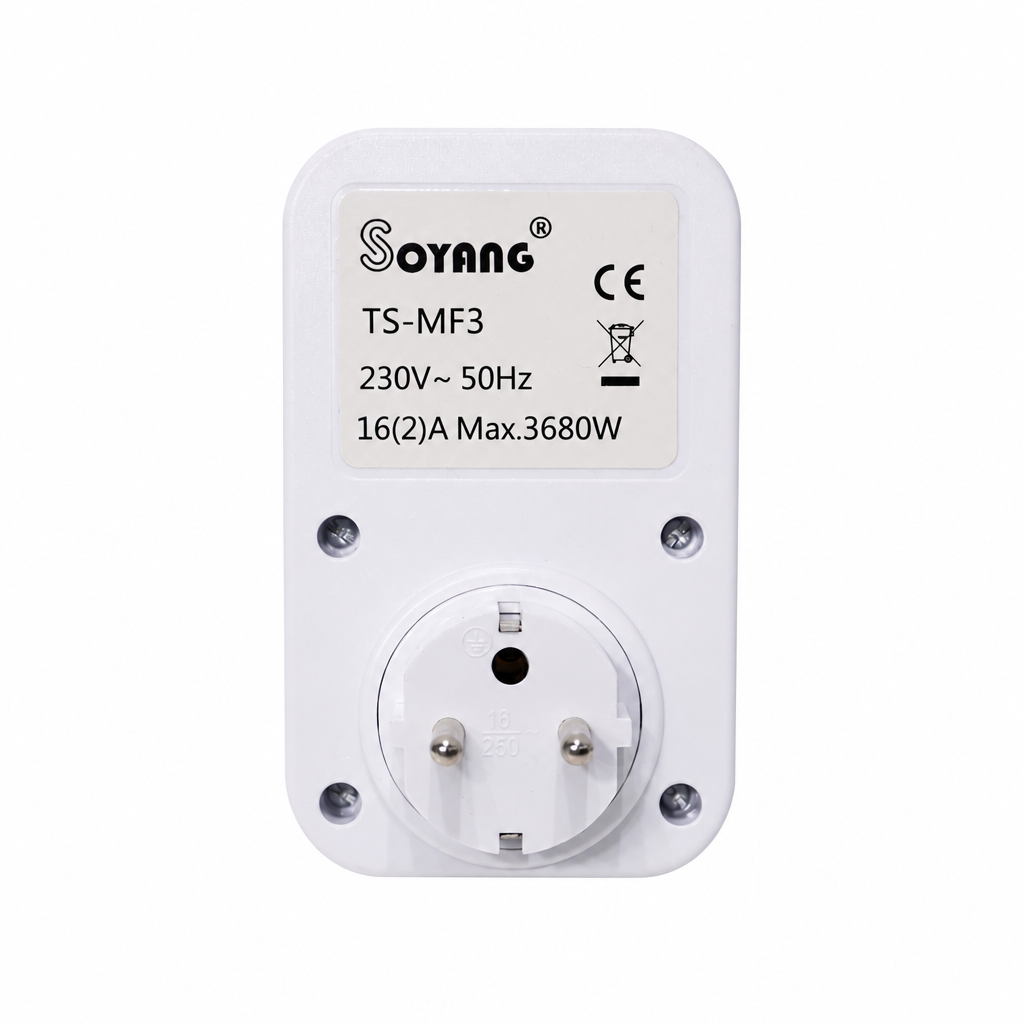

4. Rated 16(2)A, Max.3680W, 230V~,50Hz. CE certified, conforming to European safety standards.
| Item | Parameter |
|---|---|
| Model | TS-MF3 |
| Supply Voltage | 230V~, 50Hz |
| Contact Rating | 16(2)A, Max.3680W |
| Timer Type | Mechanical 24-hour repeating cycle |
| Plug Standard | Schuko (EU) |
| Indicator | Red power indicator |
| Certifications | CE |
| Environment | Dry indoor use only |
Table lamps, floor lamps and indoor decorative lighting
Aquarium lights and small aquarium equipment
Electric fans, humidifiers and battery chargers
Indoor holiday & seasonal decorative lights
1. For dry indoor use only. Not waterproof. Keep away from water splashes and humid environments.
2. Do not exceed the maximum load of 3680W. Check the power rating of connected appliances before connection.
3. No backup battery. If mains power fails, the timer dial stops rotating. Reset the current time manually once power is restored.
4. Do not daisy-chain timers. Never plug one timer into another timer socket.
5. Unplug the timer before cleaning. Wipe casing with dry cloth; do not spray liquid directly onto the unit.
6. No built-in overcurrent protection. Unplug immediately if the connected appliance malfunctions.
Clean only with dry soft cloth. Do not use alcohol, solvents or abrasive cleaners.
Inspect plug, socket and housing regularly. Stop using if cracks, burn marks or loose contacts are found.
Q: Will it continue timing when there is a power cut?
A: No. It runs on mains power only. The dial stops during power outages and manual time reset is needed after power comes back.
Q: Is this model suitable for garden outdoor use?
A: No. It has no IP splash protection rating and can only be used indoors in dry locations.
Q: What does the red light mean?
A: The red lamp lights up when the timer is powered from wall socket.
