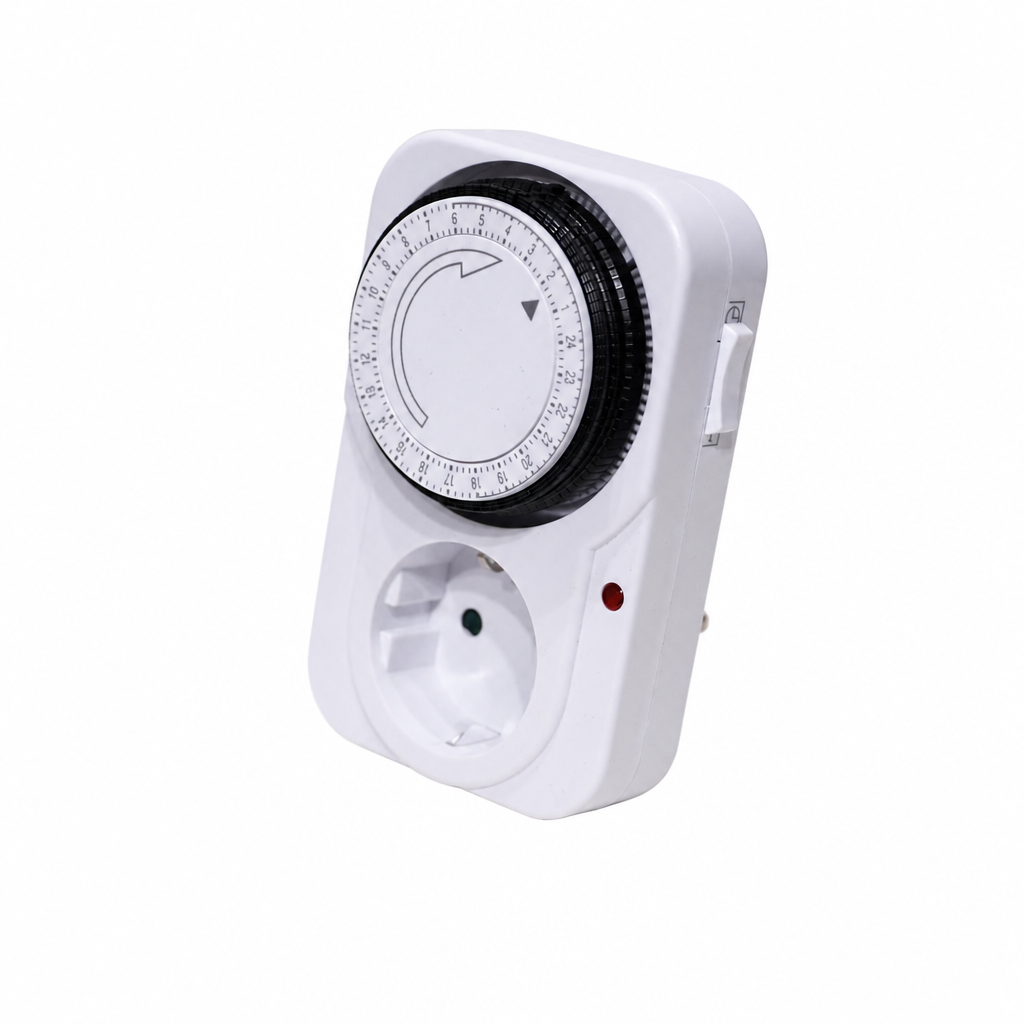

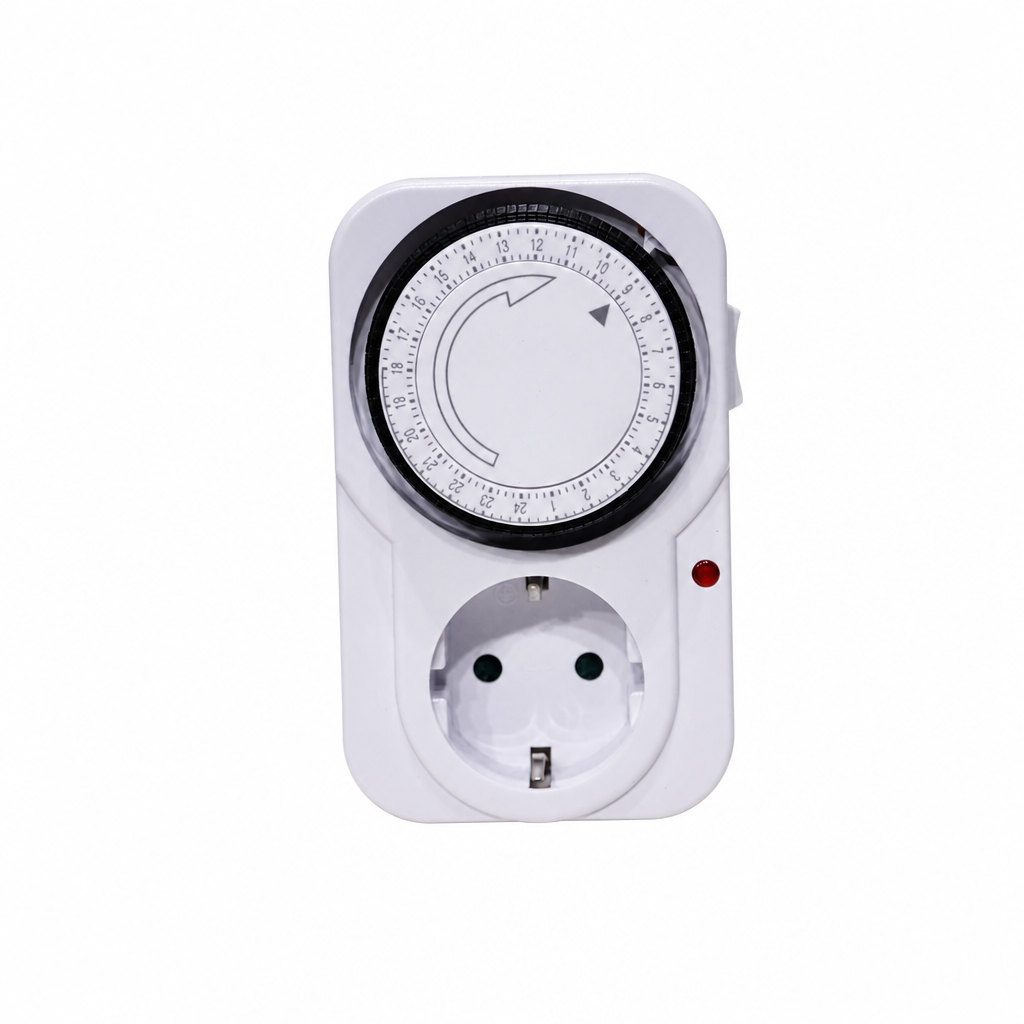

TS-MD31 Mechanical 24h Plug-in Timer Product Description
TS-MD31 is Soyang’s 24-hour repeating mechanical plug timer with EU Schuko standard. It adopts a classic rotary dial with sliding tabs for setting daily ON/OFF schedules. Equipped with red power indicator lamp and manual override switch. Simple, robust and battery-free, designed for dry indoor automation.
- Overview
- Recommended Products
1. 24-hour cyclic mechanical timer. Slide the black tabs on rotary dial to set repeating daily switching programmes, no battery required.
2. Red LED power indicator, visual check for power status.

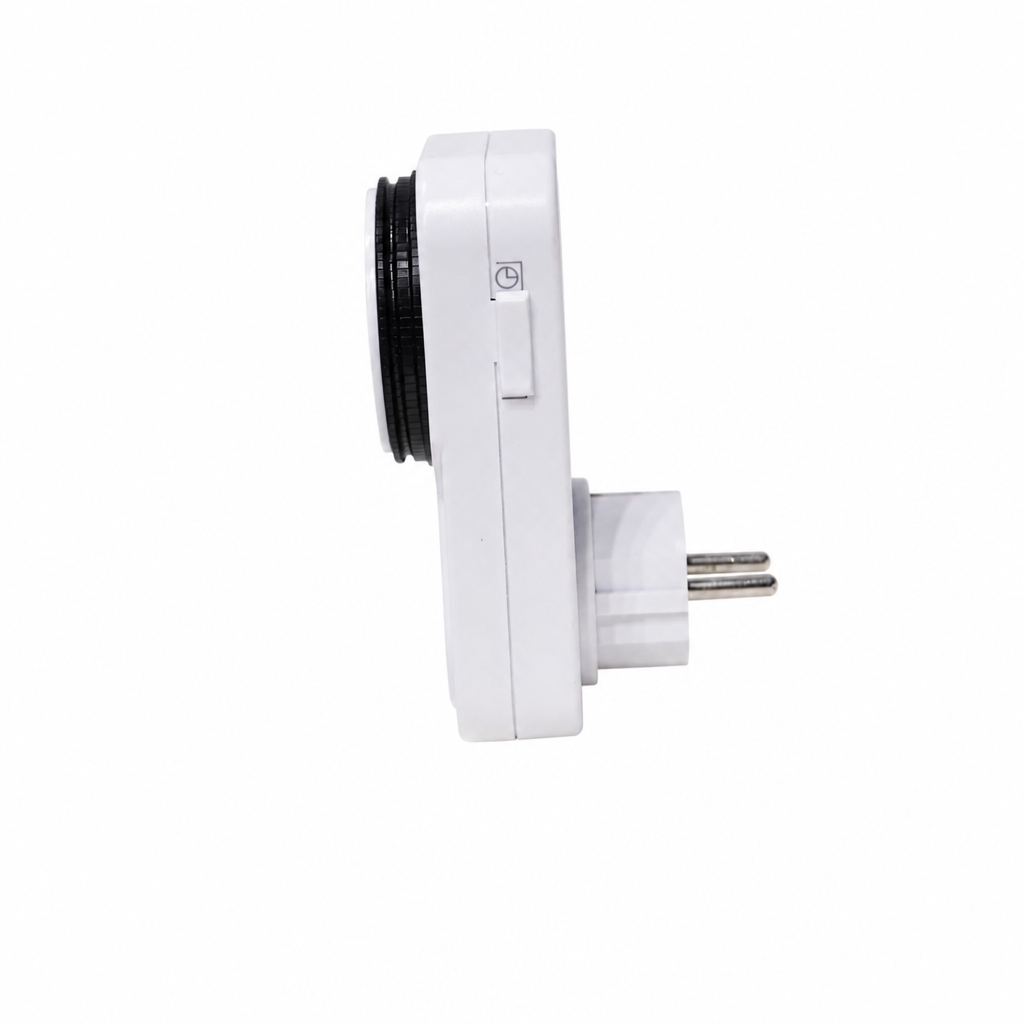

3. Manual override switch: you can bypass timer control to keep socket continuously energized.
4. EU Schuko plug and socket, plug & play, no wiring needed.
5. 16(2)A rated current. CE & GS certified by Intertek, complying with European safety requirements.
| Item | Parameter |
|---|---|
| Model | TS-MD31 |
| Supply Voltage | 220–240V~, 50Hz |
| Contact Rating | 16(2)A |
| Timer Type | Mechanical 24-hour repeating cycle |
| Plug Standard | Schuko (EU) |
| Indicator | Red power LED |
| Manual Control | Manual override switch |

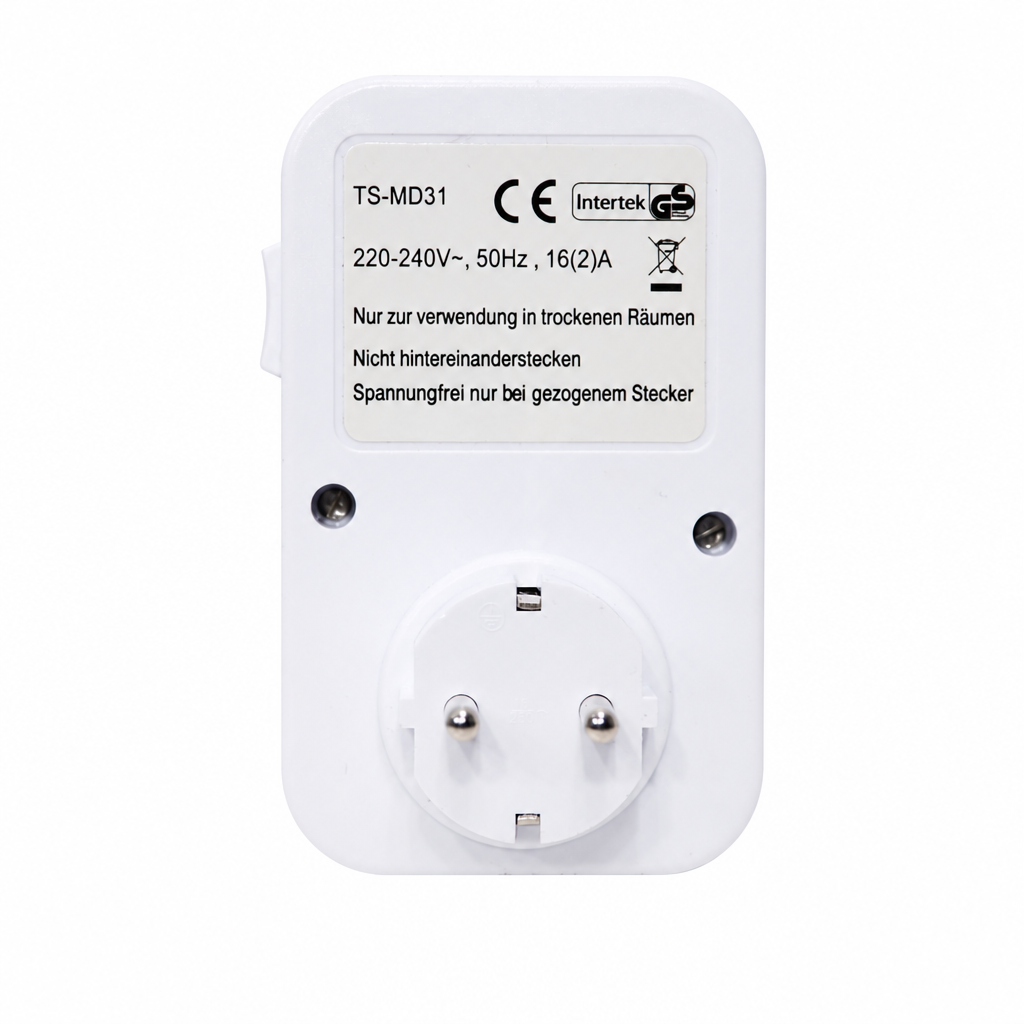

| Certifications | CE, GS (Intertek) |
| Environment | Indoor dry rooms only |
Indoor lamps, floor lights and decorative lighting
Aquarium lights, small aquarium equipment
Fans, humidifiers and chargers
Indoor holiday & seasonal lights
1. For dry indoor use only. Not waterproof. Keep away from splashing water and high humidity.
2. Do not exceed rated load. Verify the power of connected appliances before use.
3. No backup battery. Timer stops once mains power fails; reset the clock after power recovers.
4. Do not daisy-chain timers. Never plug one timer into another timer socket.
5. Unplug the timer from mains before cleaning. Wipe housing with dry cloth; do not spray liquid.
6. No built-in overcurrent protection. Unplug immediately if connected device works abnormally.
Clean only with dry soft cloth. Do not use alcohol, solvents or abrasive cleaners.
Inspect plug, socket and casing regularly. Stop using if cracks, burn marks or loose contacts appear.
Q: Does it keep time during a power cut?
A: No. It runs on mains power only. When power is lost, dial stops. You need to reset time manually after power is restored.
Q: What is the manual switch used for?
A: The override switch can turn the socket permanently ON, ignoring the timer schedule.
Q: Can this timer be used outside?
A: No. It has no splash-proof protection. Suitable for dry indoor locations only.
