TS-MD203 Mechanical 24h Plug-in Timer Product Description

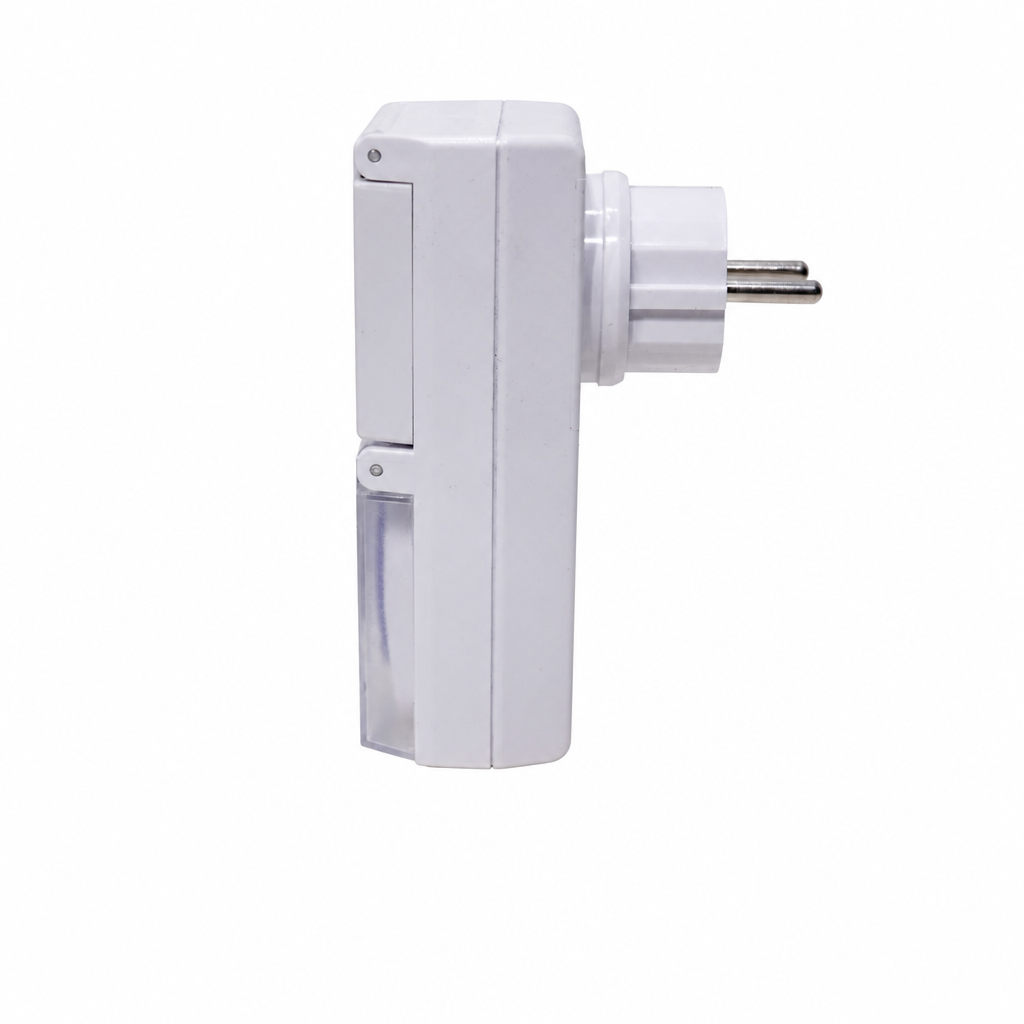

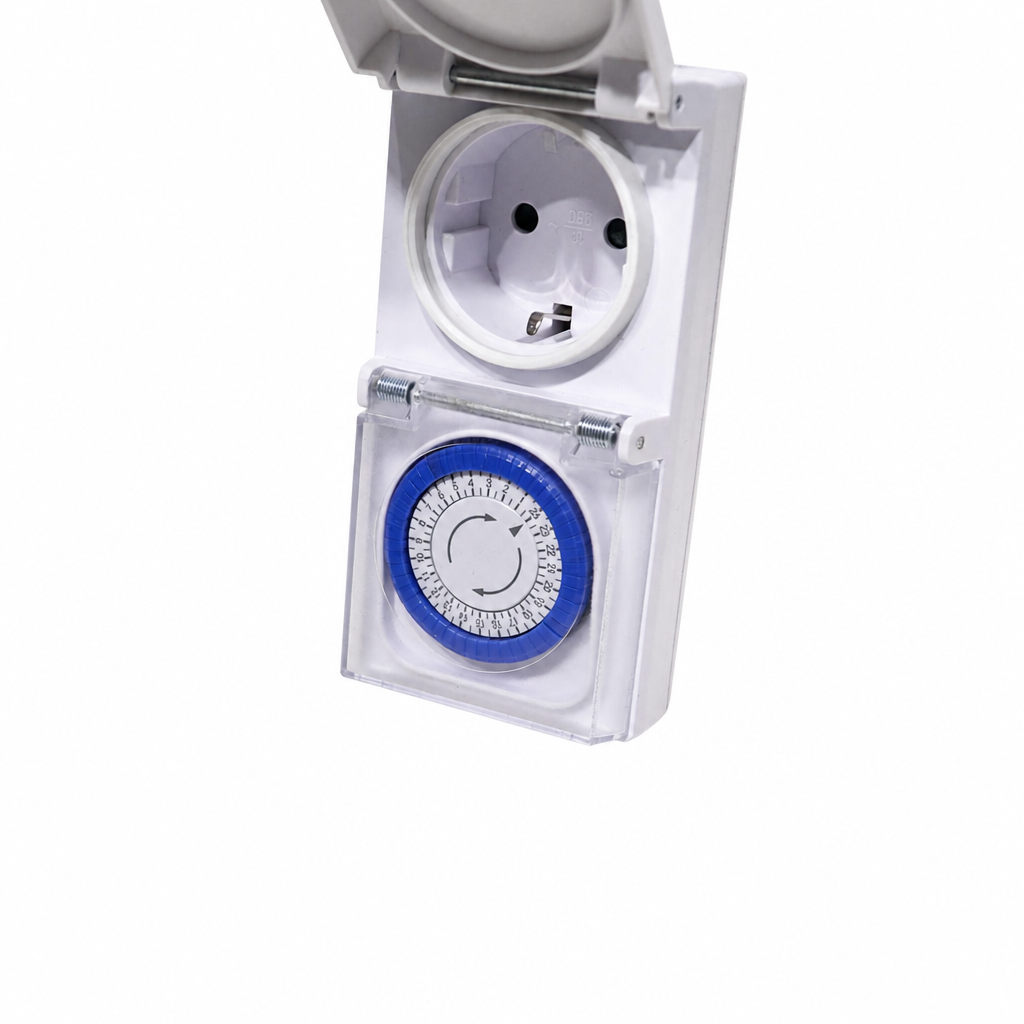

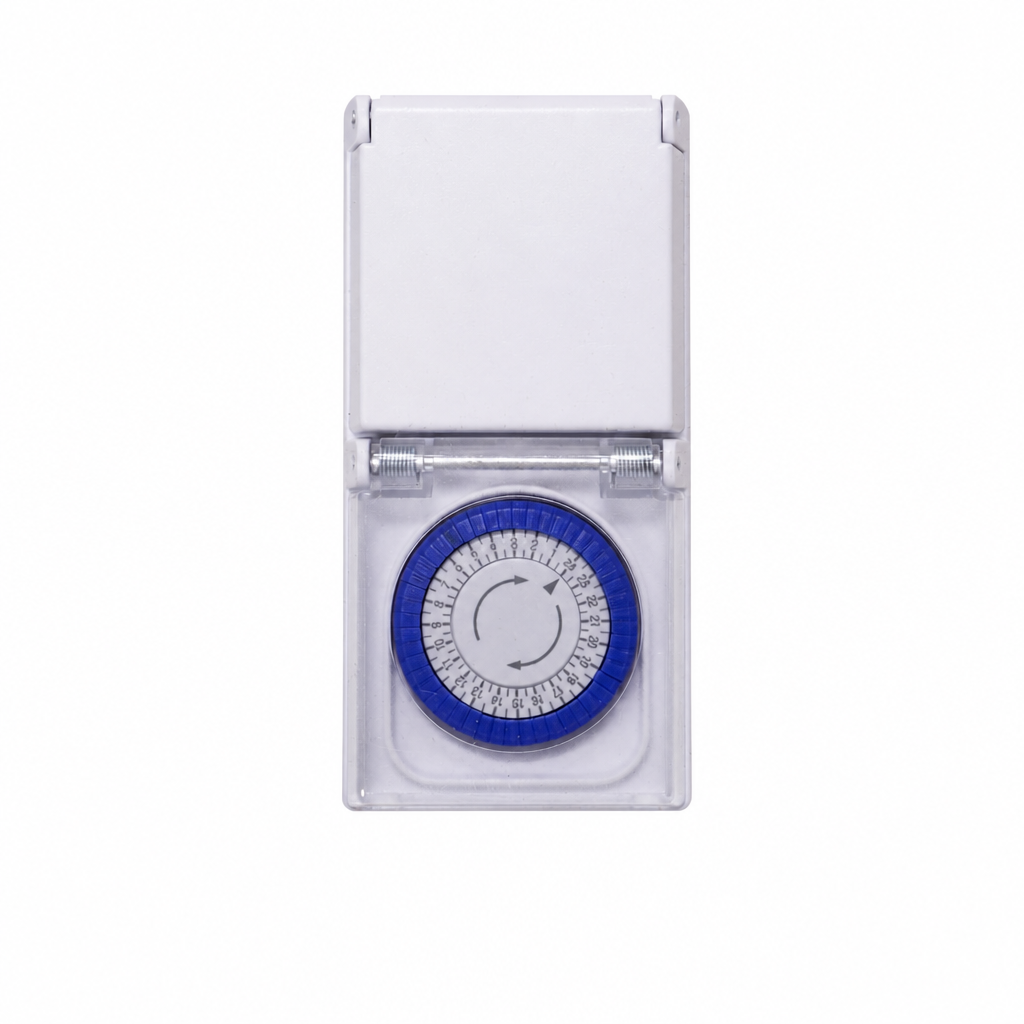

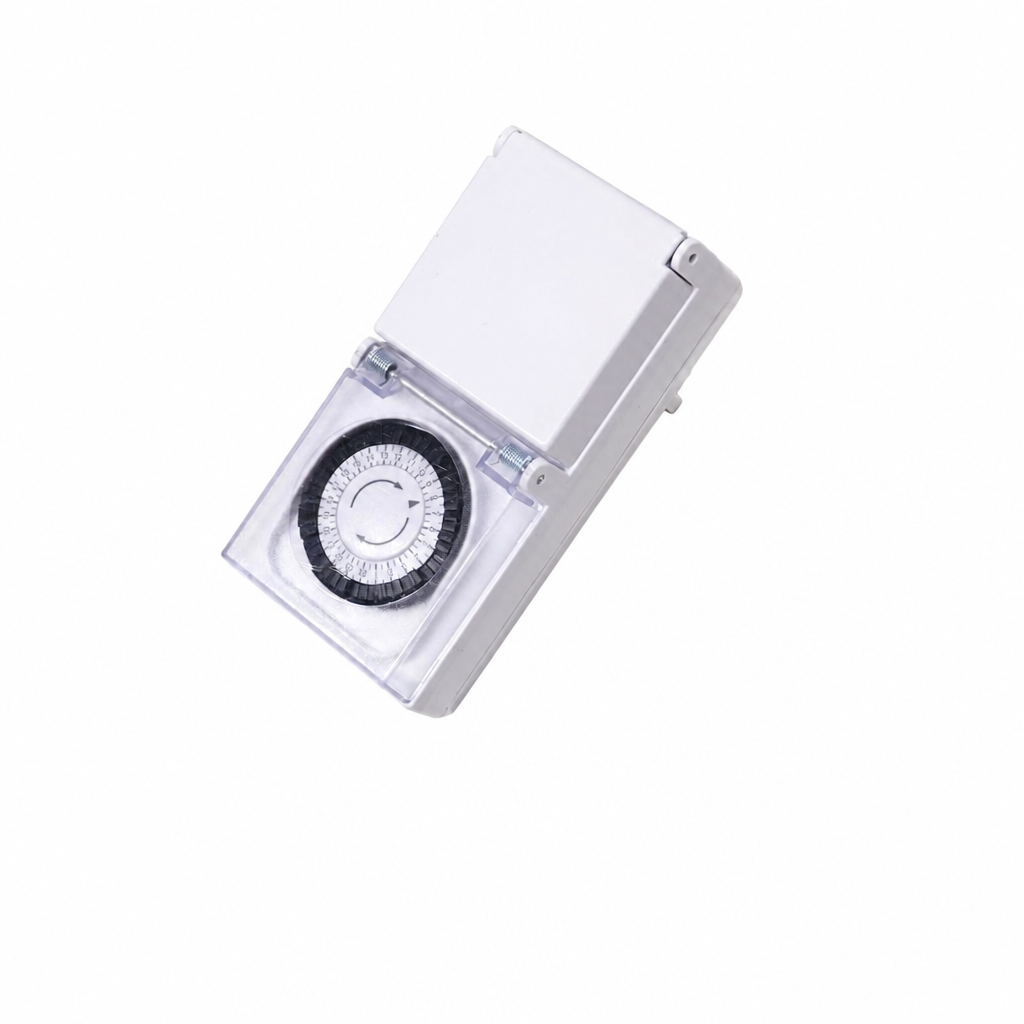

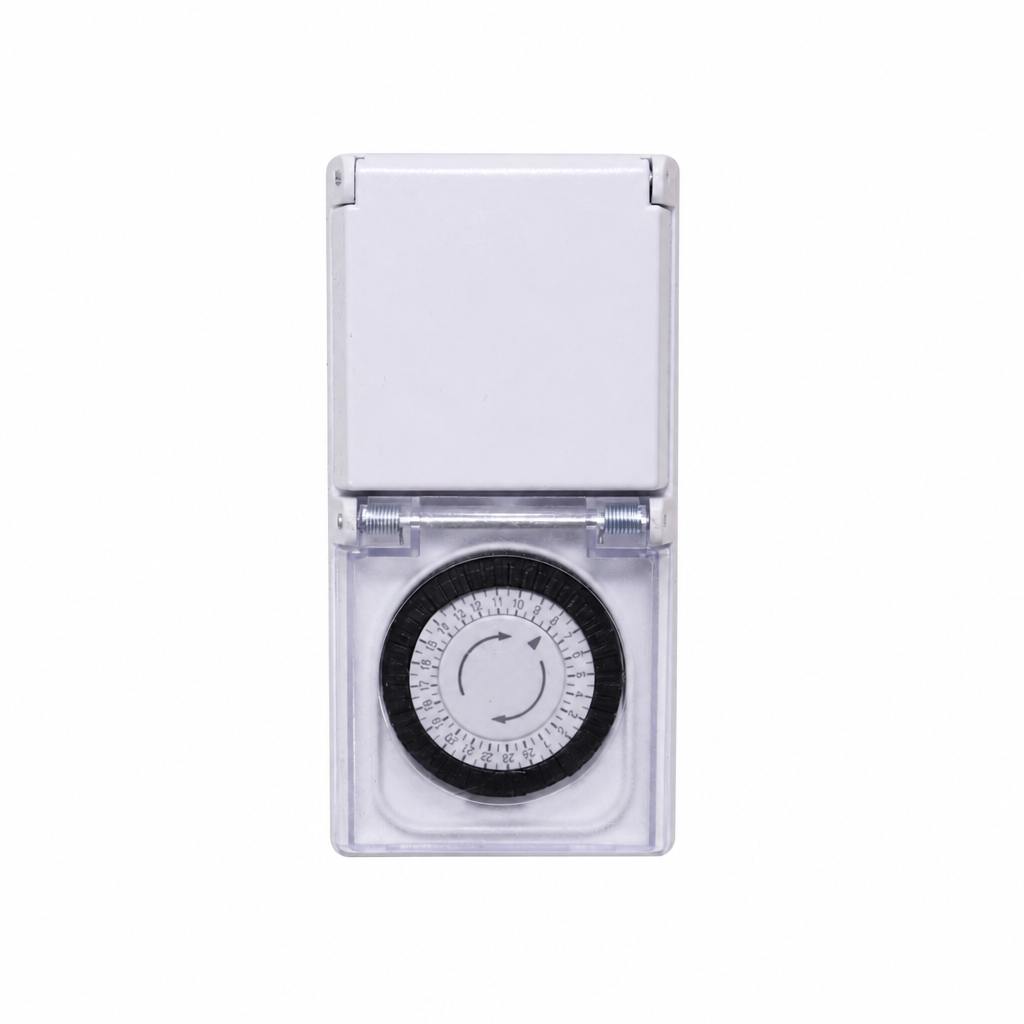

TS-MD203 is Soyang’s IP44 splash-proof 24-hour mechanical plug timer with EU Schuko standard. It features an elongated rectangular housing, flip-up protective top lid plus transparent dial cover. The blue segmented rotary dial with sliding tabs allows users to set repeating daily ON/OFF schedules. Fully mechanical, no battery needed, designed for sheltered outdoor garden use.
- Overview
- Recommended Products
1. 24-hour cyclic mechanical timer. Adjust the blue sliding tabs on rotary dial to set recurring daily switching programmes. No battery required.
2. IP44 splash protection rating. Dual protective hinged covers shield socket and timing dial against splashing water and dust. Keep lids closed to maintain IP44 performance.
3. EU Schuko plug & built-in socket, plug-and-play, no wiring required.
4. Rated 16(2)A, Max.3680W, 230V~,50Hz. CE certified, compliant with European safety standards.
| Item | Parameter |
|---|---|
| Model | TS-MD203 |
| Supply Voltage | 230V~, 50Hz |
| Contact Rating | 16(2)A, Max.3680W |
| Timer Type | Mechanical 24-hour repeating cycle |
| Plug Standard | Schuko (EU) |
| Protection Class | IP44 (Splash protected) |
| Certifications | CE |
| Environment | Sheltered outdoor/garden locations; also suitable for indoor use |
Garden lights, patio lighting, landscape lamps
Pond pumps, fountain and water feature equipment
Greenhouse fans, grow lights and ventilation devices
Outdoor seasonal decorative lights under eaves
1. IP44 is splash-resistant ONLY. It cannot withstand continuous heavy rain or submersion. Must be mounted in sheltered positions such as under eaves.
2. Do not exceed the maximum load of 3680W. Verify the power rating of connected appliances before use.
3. No backup battery. When mains power fails, timer dial stops rotating. Reset the time manually after power recovers.
4. Do not daisy-chain timers. Never plug one timer into another timer socket.
5. Both protective covers must remain closed during operation to preserve IP44 splash protection.
6. Unplug the timer before cleaning. Wipe the housing with dry cloth. Do not spray liquid directly onto the unit.
7. No built-in overcurrent protection. Unplug the timer immediately if the connected appliance works abnormally.
Clean only with dry or slightly damp soft cloth. Do not use alcohol, solvents or abrasive cleaners.
Inspect the casing, seals and covers regularly. Stop using if cracks or damaged seals are found.
Q: Will it keep running the timer when power is cut off?
A: No. It is mains-powered mechanical timer. The dial stops in power outages, you have to reset the time after power restores.
Q: What makes this model different from TS-MD202?
A: TS-MD203 adopts longer rectangular housing and blue dial tabs, while TS-MD202 has teardrop curved housing and black dial tabs, both IP44 rated.
Q: Can it be mounted vertically outdoors?

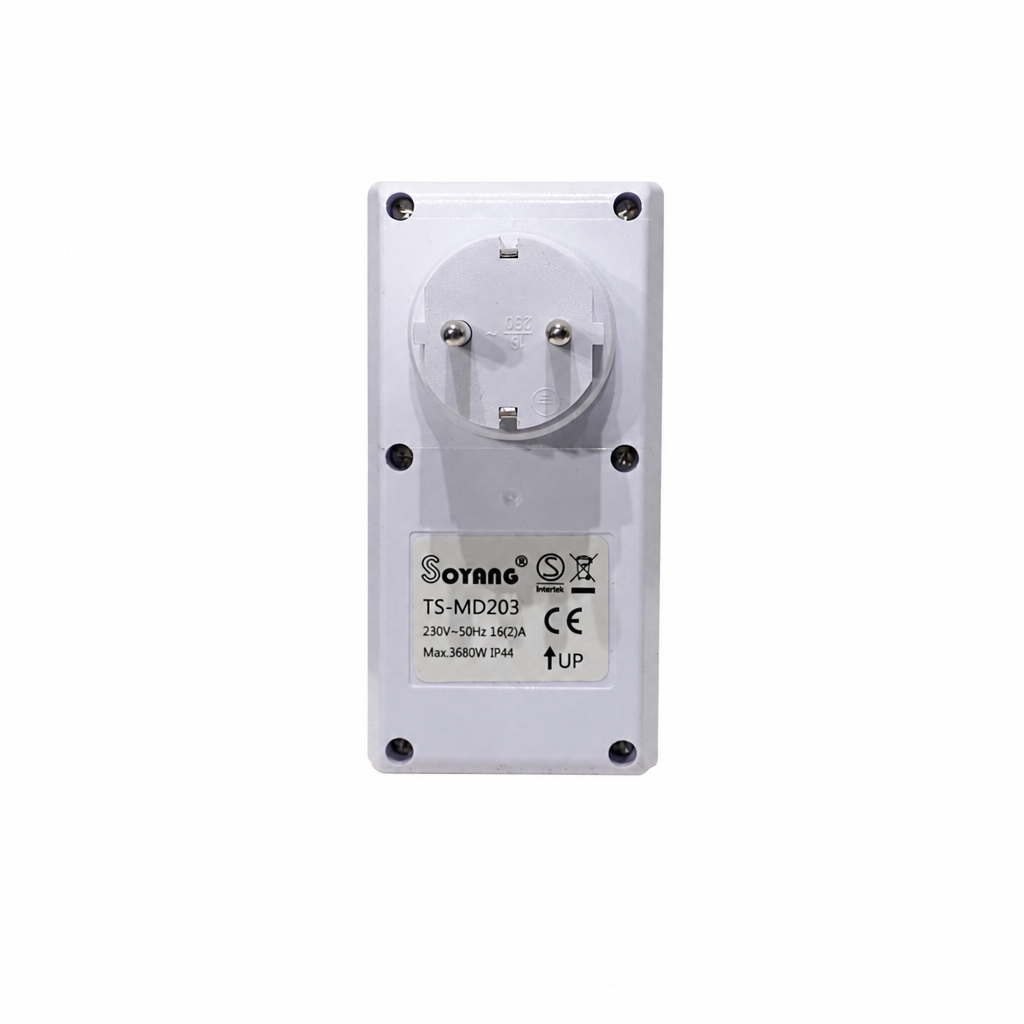

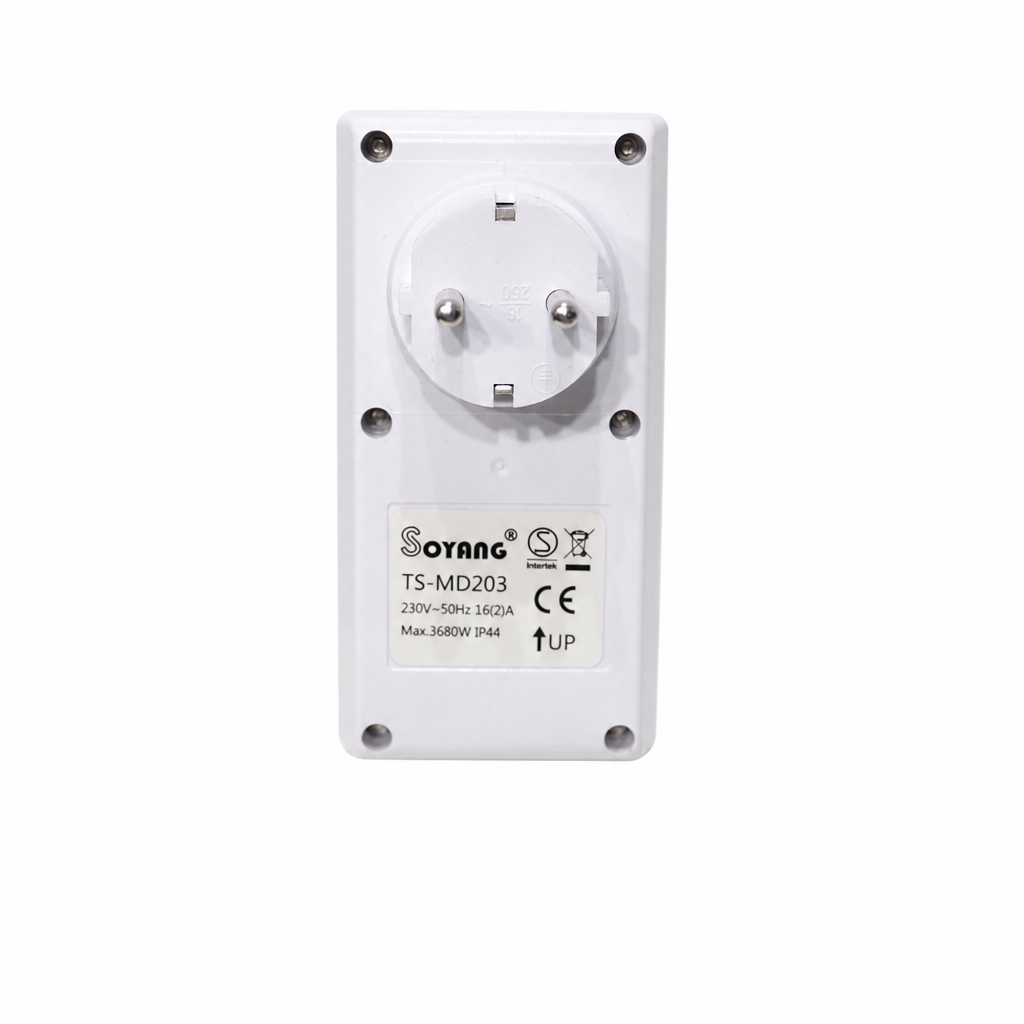

A: Yes, follow the “UP” marking on back label for correct vertical installation and waterproof performance.
