TS-MD22 IP44 Mechanical Plug-in Timer Product Description

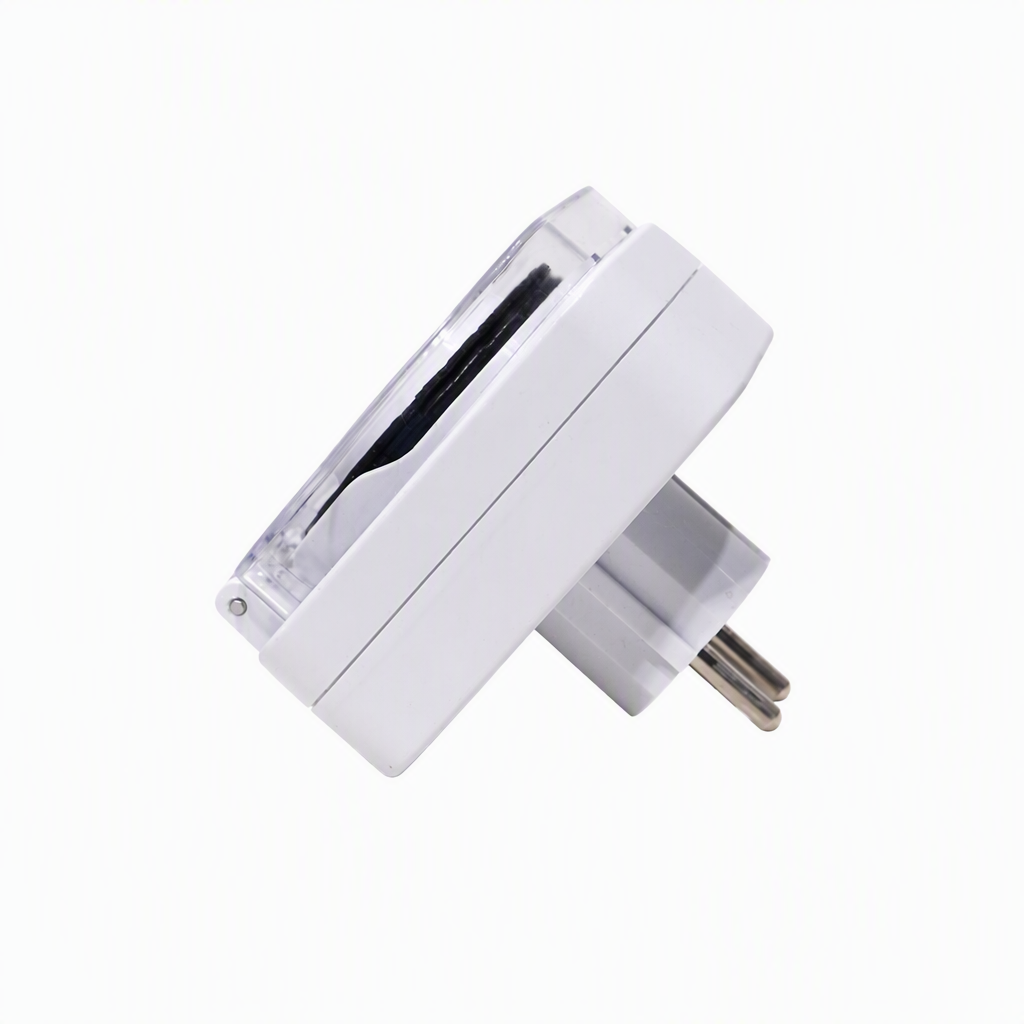

TS-MD22 is Soyang 24-hour mechanical plug timer with EU Schuko plug. It comes with a transparent hinged protective cover, IP44 splash-proof rating. Easy tab-set rotary dial for repeating daily automatic ON/OFF cycles. Suitable for sheltered outdoor, garden and patio use. Plug and play, no battery required.
- Overview
- Recommended Products

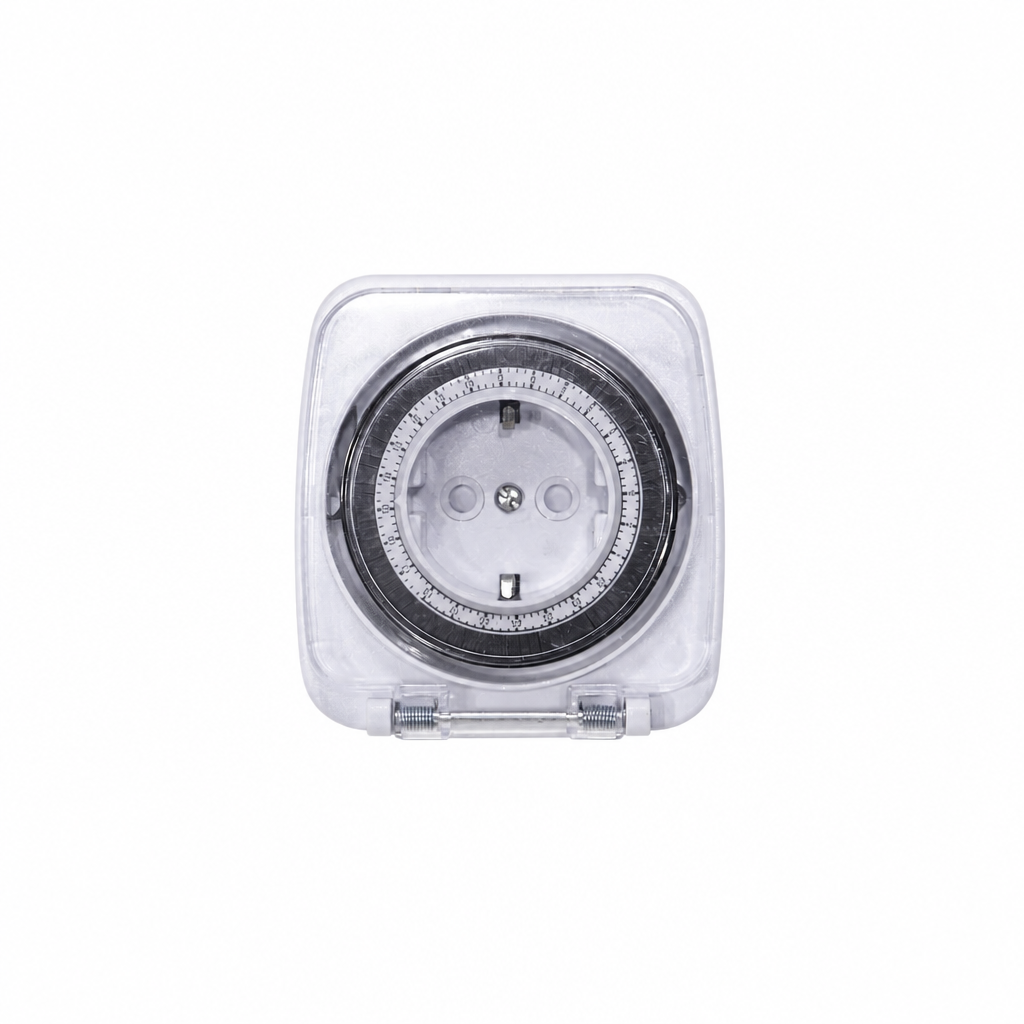

1. 24-hour repeating mechanical timer dial. Push tabs on the rotary wheel to set daily switching schedule, runs automatically every day. No backup battery.

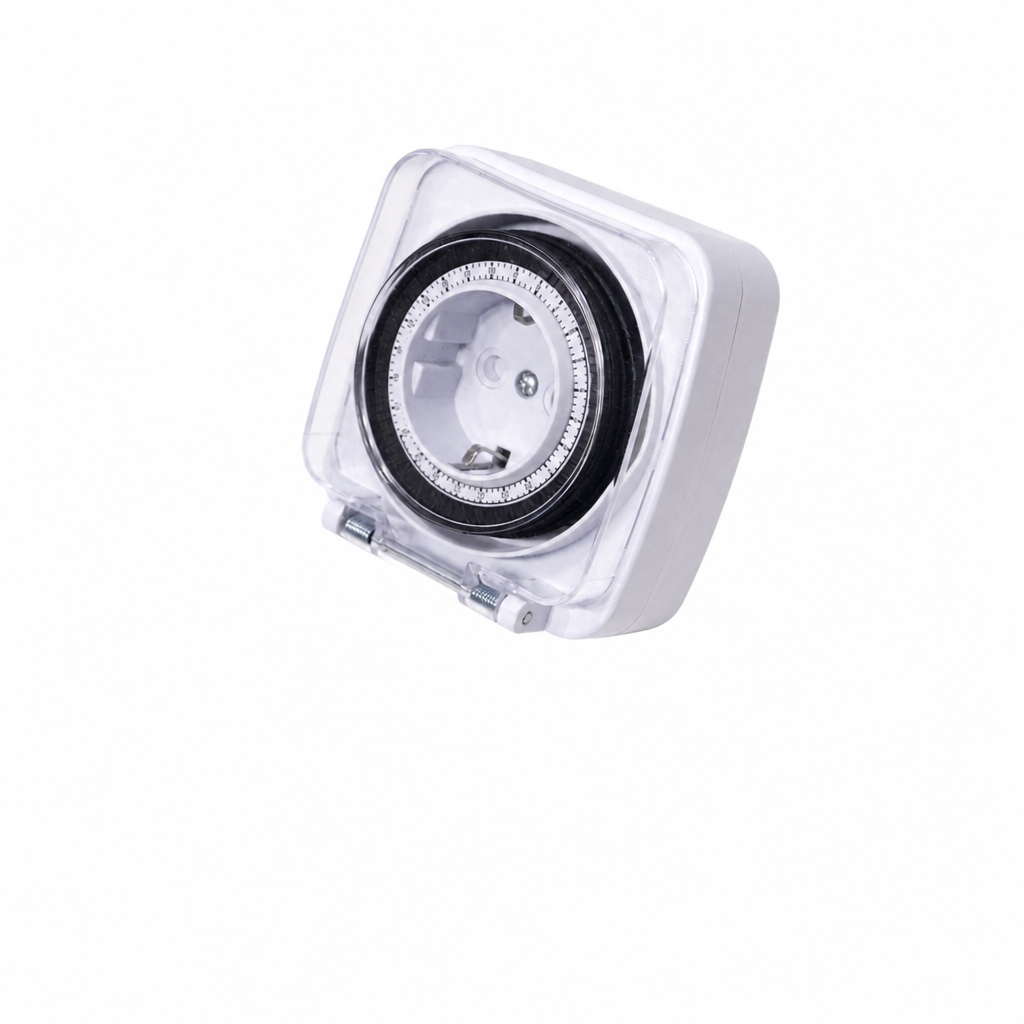

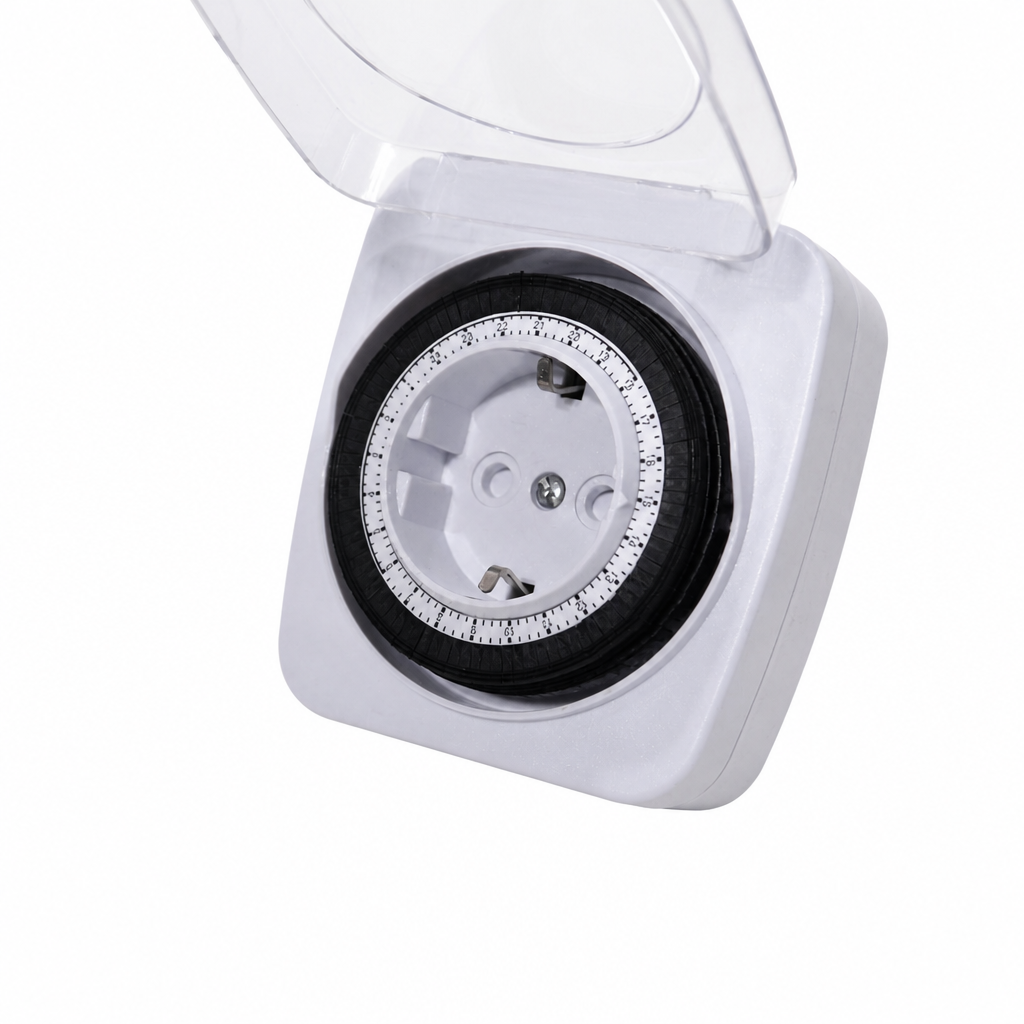

2. IP44 splash-resistant transparent hinged lid. Protects the dial and socket from splashing water and dust.

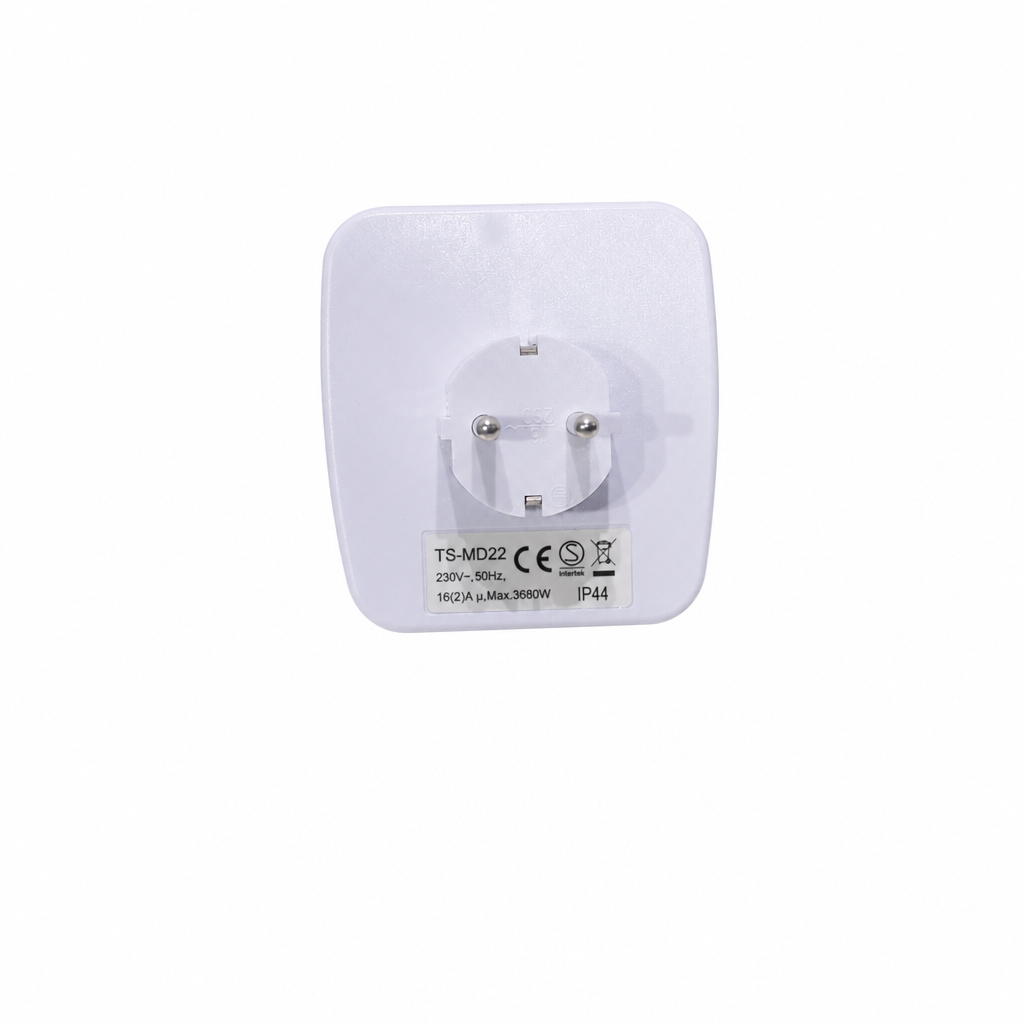

3. EU Schuko plug and integrated socket, plug-in design without wiring.
4. Heavy-duty contact: 16(2)A, max power 3680W.
5. CE certified, meets European safety standards.
| Item | Parameter |
|---|---|
| Model | TS-MD22 |
| Supply Voltage | 230V~, 50Hz |
| Contact Rating | 16(2)A, Max. 3680W |
| Timer Type | Mechanical 24-hour repeating cycle |
| Plug Standard | Schuko (EU) |
| Protection Class | IP44 (Splash protected) |
| Certifications | CE |
| Operation | Plug & play, tab setting on rotary dial |
| Environment | Covered outdoor, garden, patio; indoor dry locations |
Garden lights, landscape lamps, patio decorative lighting
Pond pumps, water fountains
Greenhouse ventilation & lighting
Outdoor seasonal festive lights under eaves
1. IP44 = splash-proof only. Not submersible. Do not expose to continuous heavy rain without shelter. Use under eaves or covered outdoor space.
2. Do not exceed maximum load of 3680W. Check appliance power rating before connection.
3. No backup battery. If mains power cuts off, timer dial stops rotating. Reset the current time after power restoration.
4. Do not daisy-chain timers. Never plug one timer into another timer socket.
5. Unplug before cleaning. Wipe casing with dry cloth. Do not spray water directly on the unit.
6. No built-in overcurrent protection. Disconnect power immediately if the connected appliance malfunctions.
Clean only with dry or slightly damp soft cloth. Do not use alcohol, solvents or abrasive cleaners.
Check housing, plug and cover regularly. Stop using the timer if cracks or damage appear.
Q: Does it keep timing during power outage?
A: No. It runs purely from mains supply. When power fails, the dial stops. Reset time manually once power returns.
Q: Can I leave it fully exposed in open rain?
A: No. IP44 defends against splashes, but not heavy downpour. Must be installed under cover.
Q: Is the transparent lid removable?
A: It is a hinged flip cover, not designed to be taken off completely. Keep it closed when operating outdoors for splash protection.
