TS-WD1 7-Day Mechanical Plug-in Timer Product Description

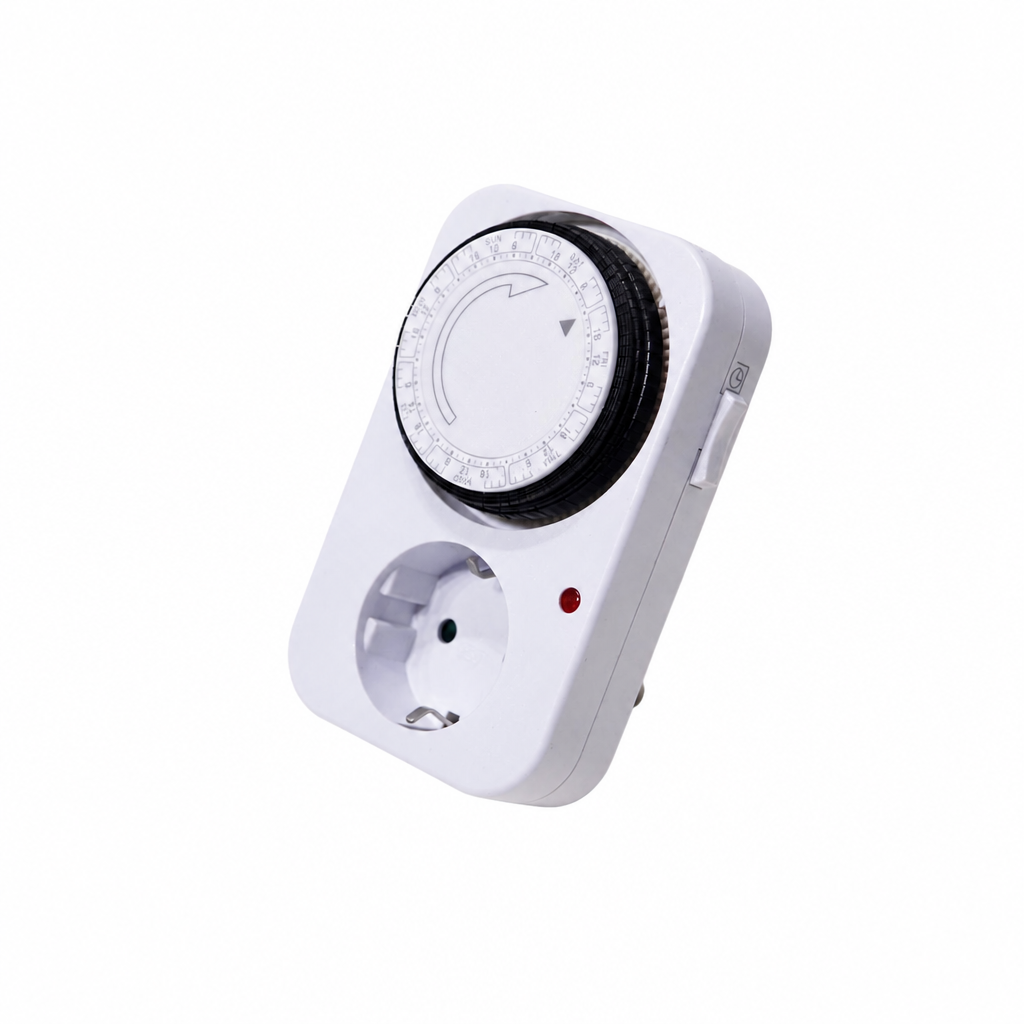

TS-WD1 is Soyang’s EU Schuko 7-day cycle mechanical plug timer. It has a white rounded housing. The dial is marked from Monday to Sunday, enabling weekly schedules. It comes with red power indicator light and manual override switch. Fully mechanical, battery-free, for indoor appliance time control.
- Overview
- Recommended Products
1. 7-day cyclic mechanical timer. Dial marked MON to SUN. You can set different ON/OFF periods for each weekday. No battery required.

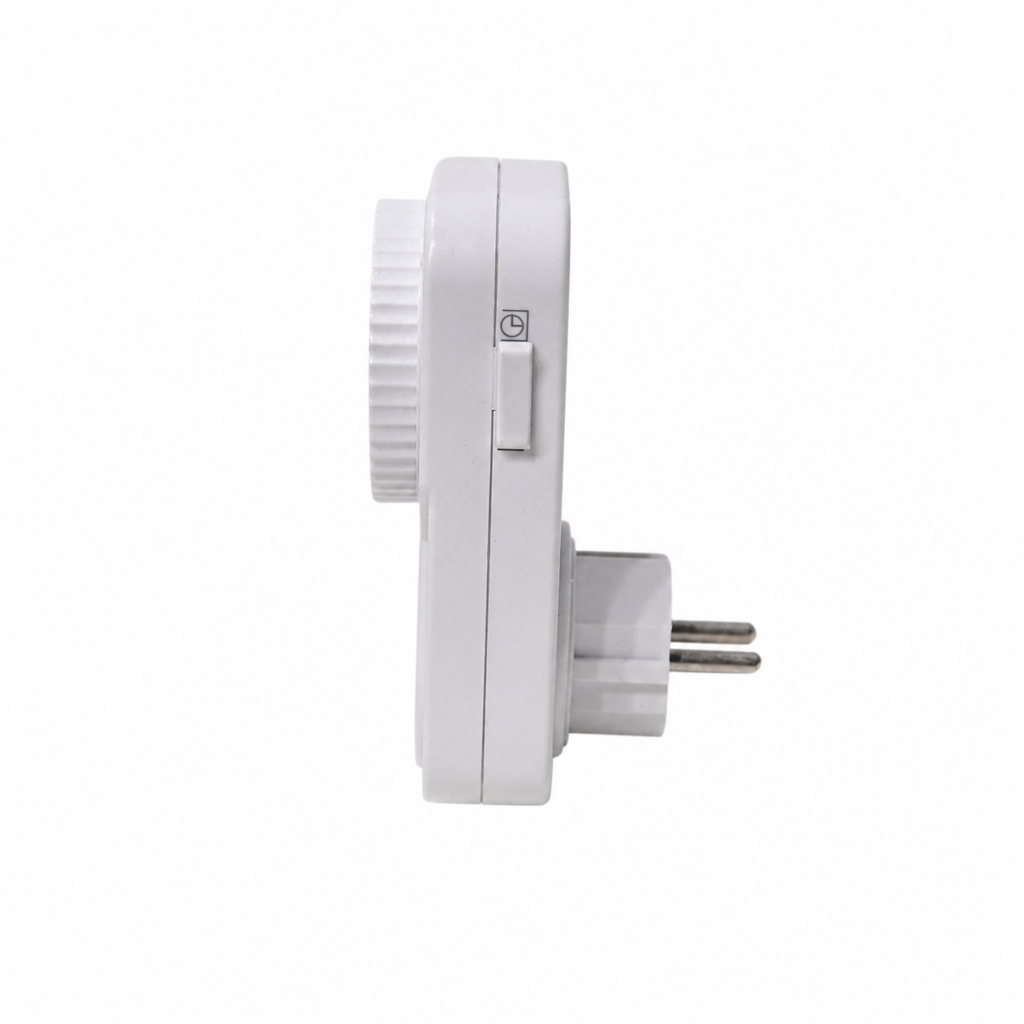

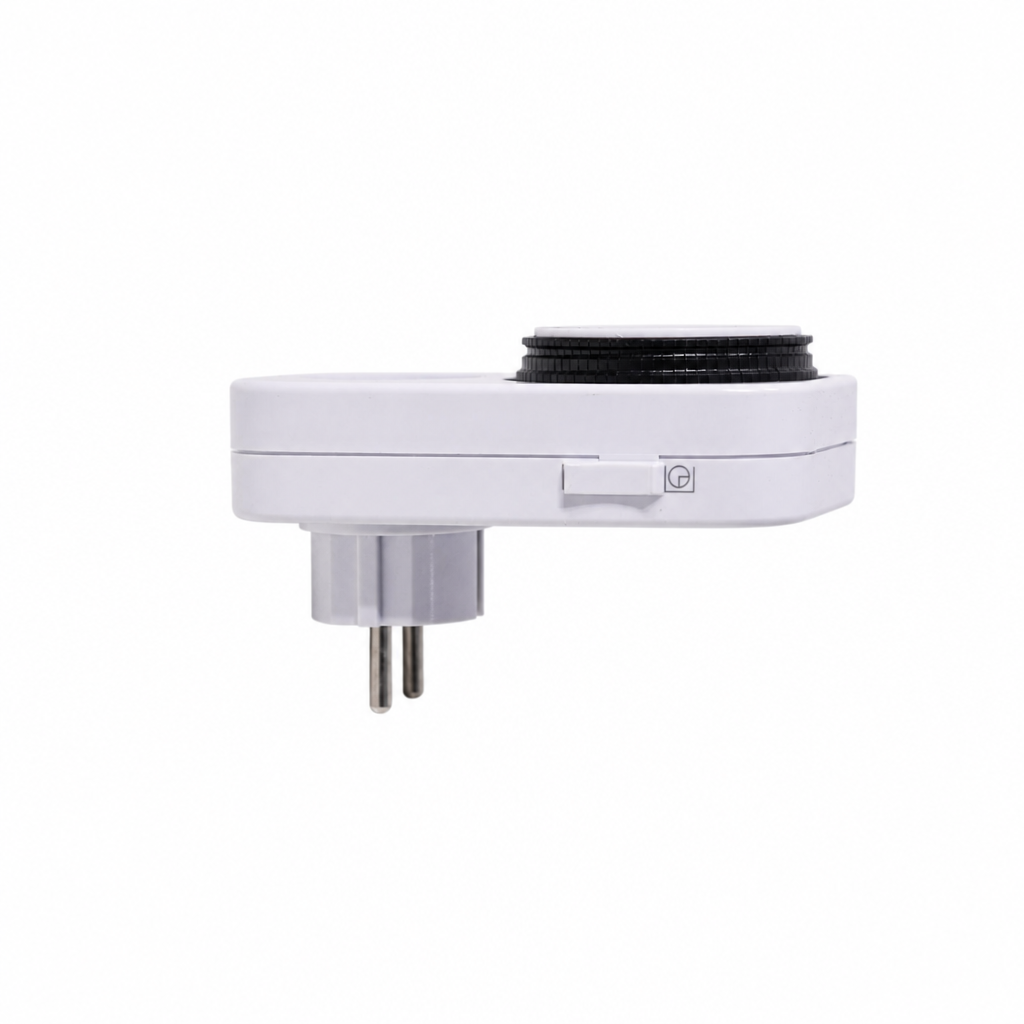

2. Red power indicator for visible power status. Manual override switch to bypass preset timer and keep socket powered continuously.
3. Integrated EU Schuko plug & socket, plug-and-play, no wiring required.

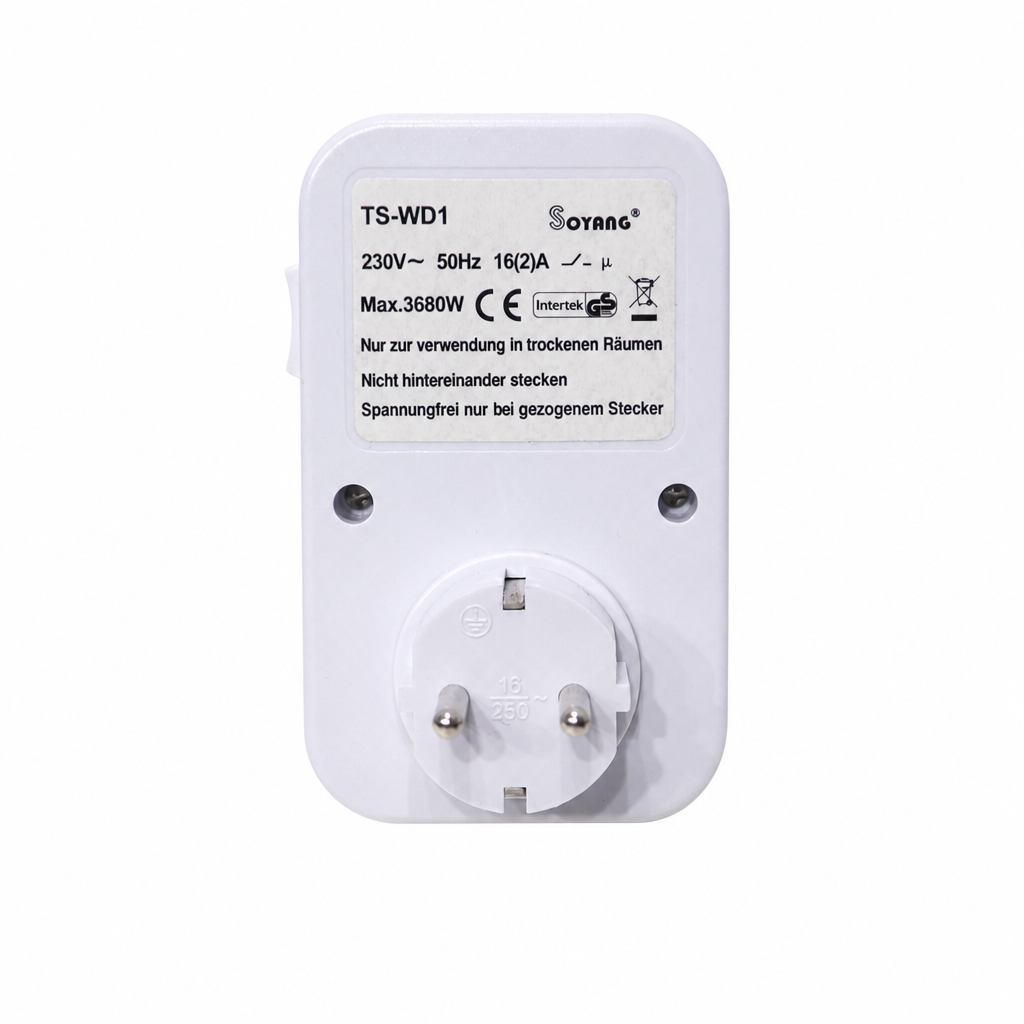

4. Rated 16(2)A, Max.3680W, 230V~,50Hz. CE & Intertek certified, compliant with European safety standards.
| Item | Parameter |
|---|---|
| Model | TS-WD1 |
| Supply Voltage | 230V~, 50Hz |
| Contact Rating | 16(2)A, Max.3680W |
| Timer Type | Mechanical 7-day cycle timer |
| Plug Standard | Schuko (EU) |
| Indicator | Red power LED |
| Manual Control | Manual override switch |
| Certifications | CE, Intertek |
| Environment | Dry indoor locations |
Table lamps, floor lamps and indoor decorative lighting
Aquarium lights, aquarium equipment, pet devices
Electric fans, humidifiers and battery chargers
Indoor festive string lights, aroma diffusers
1. For dry indoor use only. Not waterproof. Keep away from splashes and humid areas.
2. Do not exceed maximum load of 3680W. Check the power rating of connected appliances before use.
3. No backup battery. Timer dial stops when mains power fails. Reset time and weekday manually after power recovery.
4. Do not daisy-chain timers. Never plug one timer into another timer socket.
5. Unplug the timer before cleaning. Wipe casing with dry cloth. Do not spray liquid directly onto the unit.
6. No built-in overcurrent protection. Unplug the timer right away if the connected appliance malfunctions.
Clean only with dry or slightly damp soft cloth. Do not use alcohol, solvents or abrasive cleaners.
Regularly inspect plug, socket and housing. Stop using if cracks or damaged contacts are found.
Q: Will it keep timing during power outages?
A: No. It runs on mains power only. The dial stops when power cuts out. You need to reset the time and weekday once power returns.
Q: What is the difference compared with 24h mechanical timers?
A: Standard 24h timers repeat the same schedule every day. TS-WD1 works on a 7-day cycle, allowing different settings for each day of the week for greater flexibility.
Q: What is the manual override switch for?
A: When manual mode is activated, preset timer programmes are disabled and the socket stays powered on for temporary appliance use.
