TS-ED20 DE Digital Timer Socket Product Description

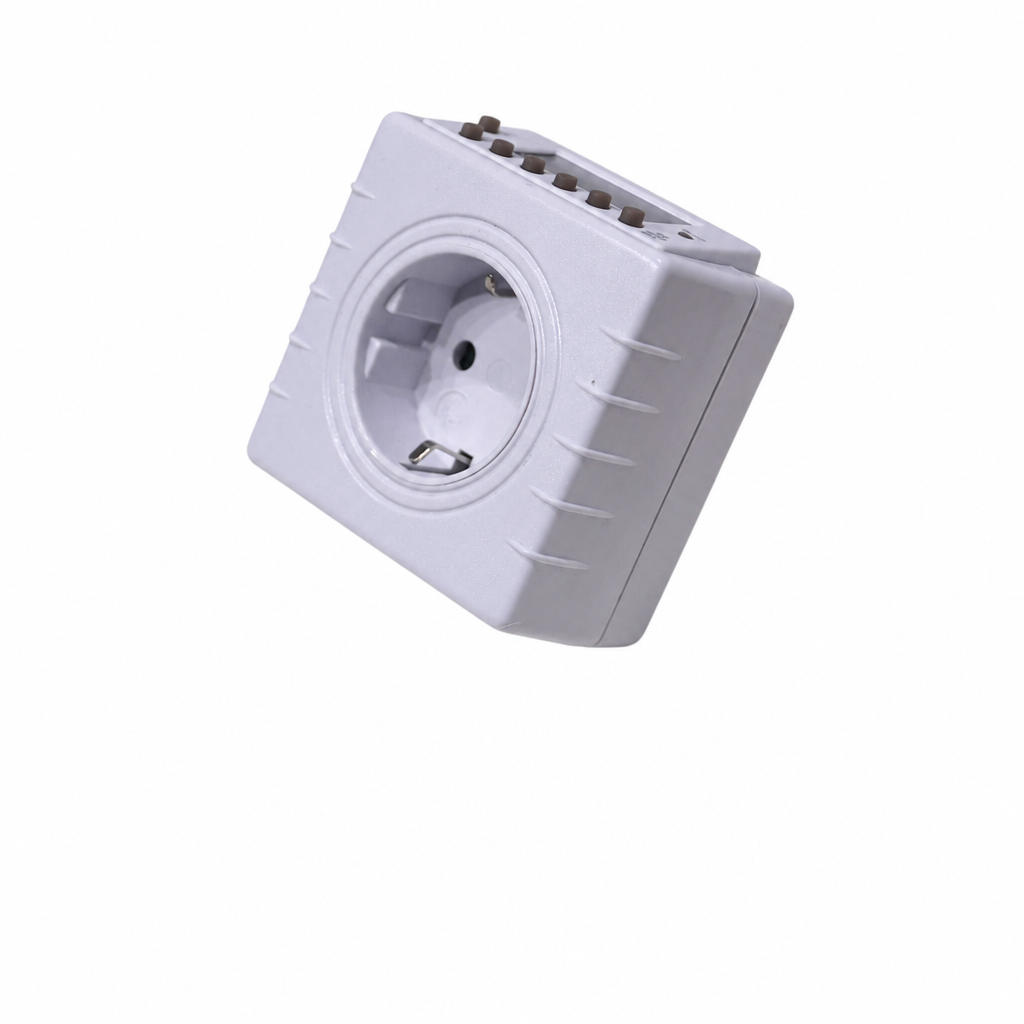

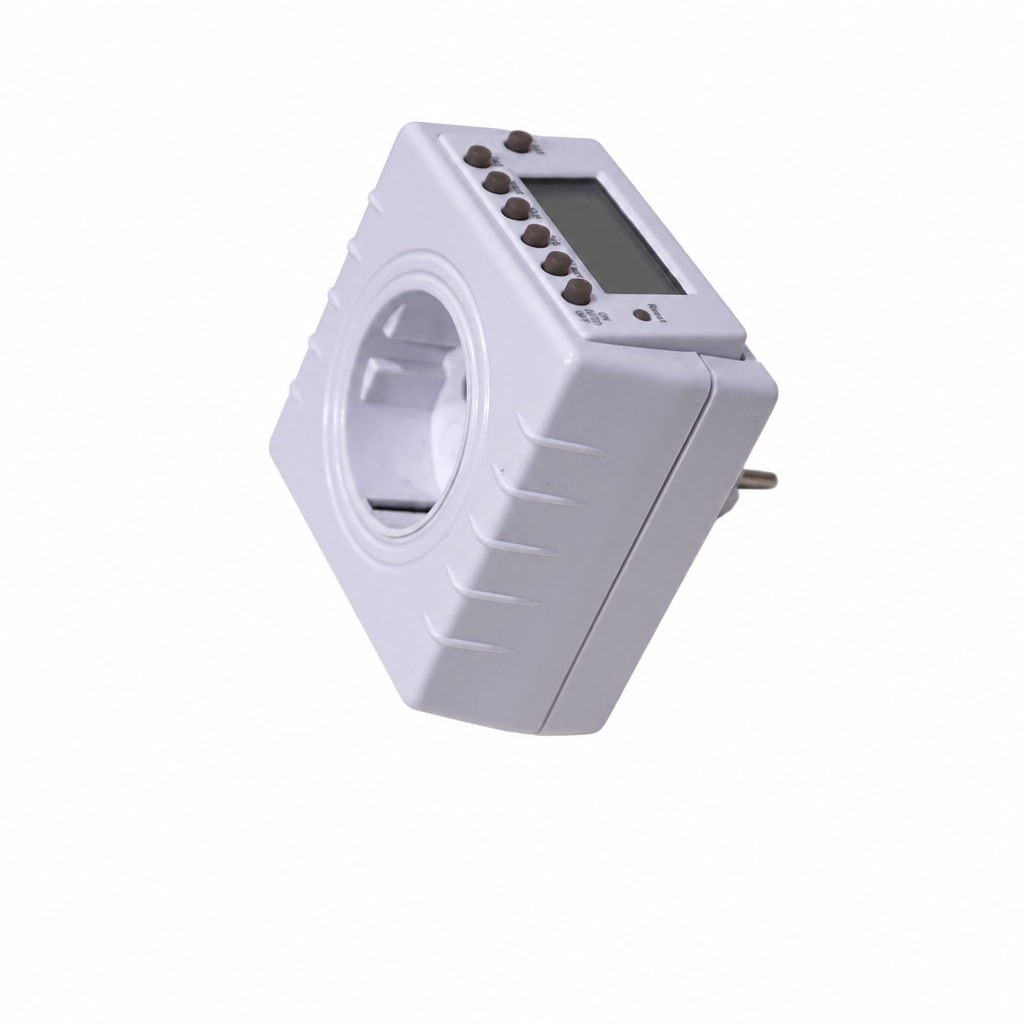

TS-ED20 is a Soyang DE Schuko digital timer socket with 7-day weekly programmable timer. It features a compact square housing and LCD display. Multiple ON/OFF schedules can be freely programmed to automatically power appliances on and off, saving energy and enabling simple home automation.
- Overview
- Recommended Products
1. 7-day weekly cycle timer. Supports up to 20 independent ON/OFF programs. Schedules can run on a single day, selected multiple days or repeat the whole week.

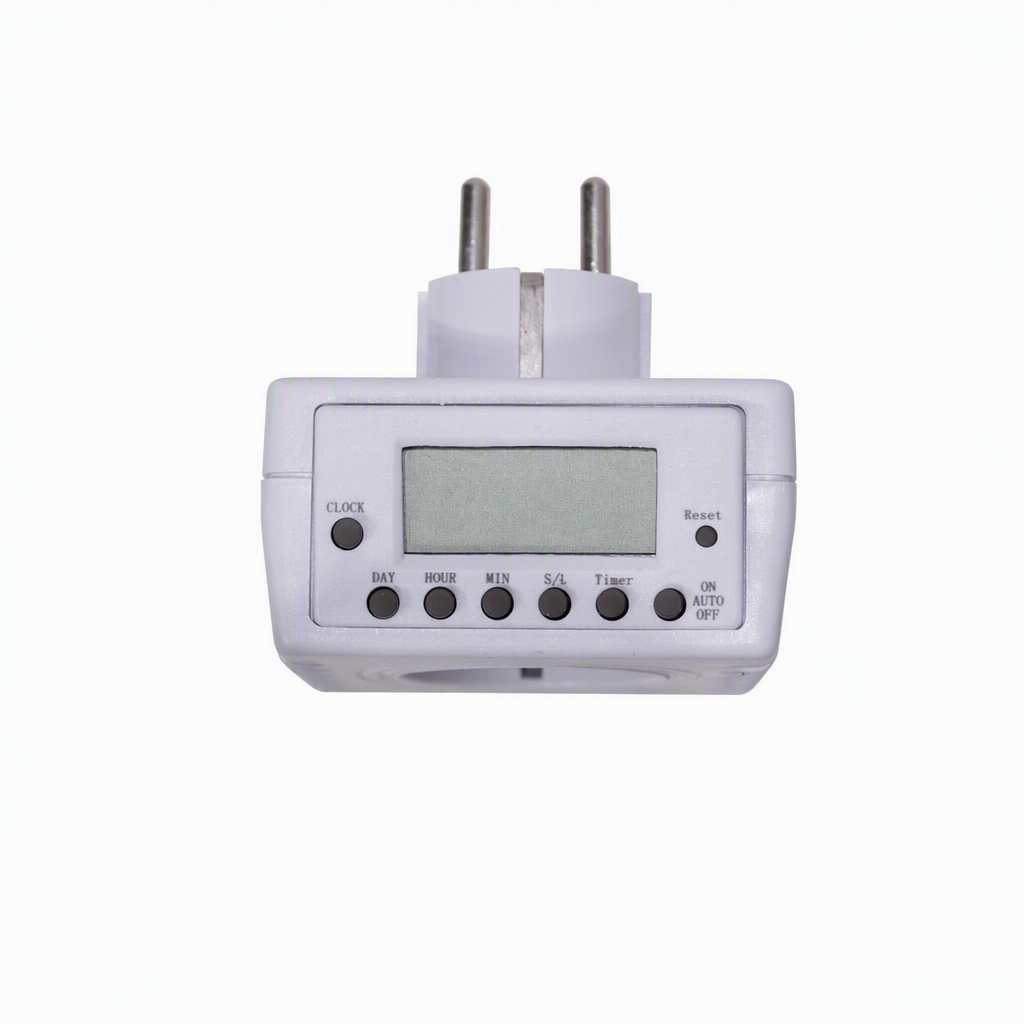

2. LCD display and 7-button control panel (CLOCK, DAY, HOUR, MIN, S/L, Timer, ON/AUTO/OFF plus Reset button). Time and program setup is straightforward.
3. Built-in 1.2V Ni-MH rechargeable battery. Time and saved timer schedules are retained during brief power outages; no need to reset settings after power resumes.
4. Manual / Auto mode switch. You can manually force the output ON or OFF anytime. Manual override will not erase stored timer programs.

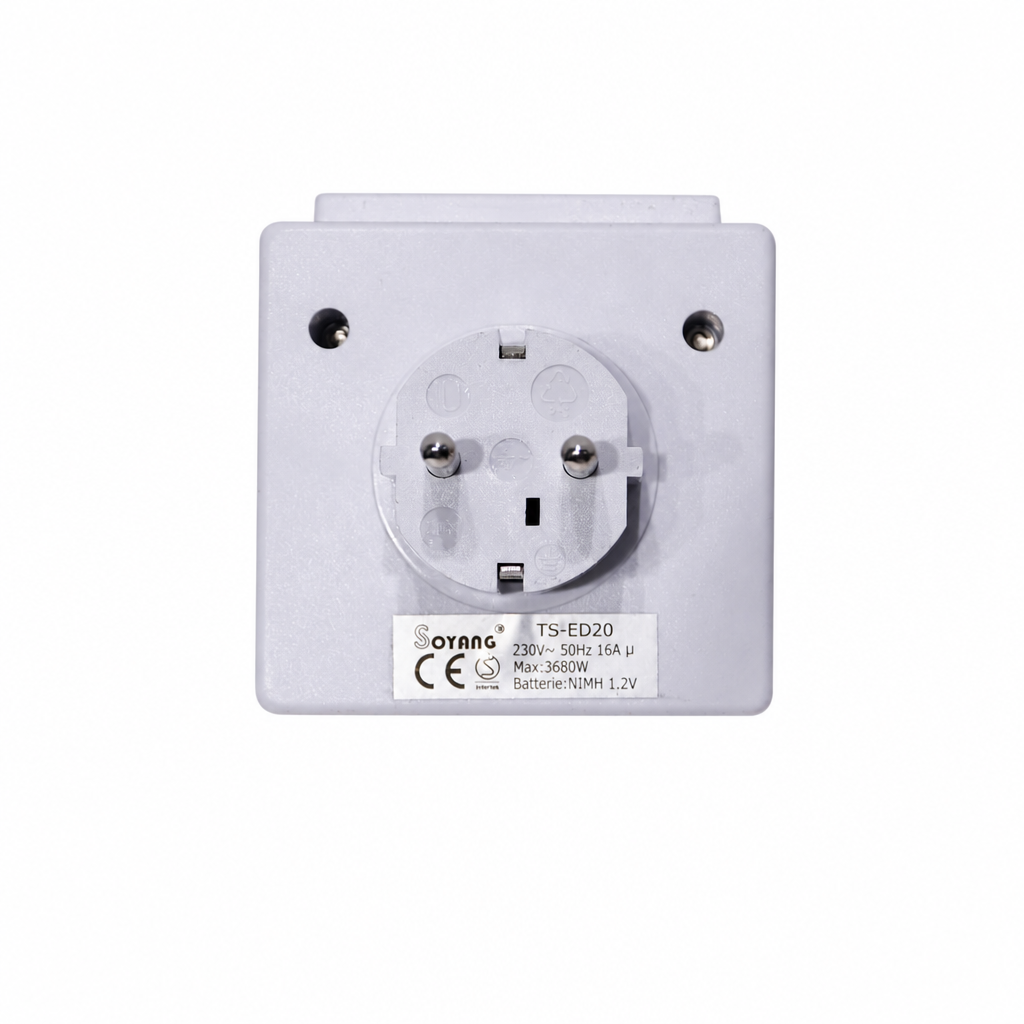

5. DE Schuko plug, rated 16A, max load 3680W. Compact square shape, plug & play.
| Item | Parameter |
|---|---|
| Model | TS-ED20 |
| Rated Voltage | 230V~ 50Hz |
| Max Current | 16A |
| Max Power | 3680W |
| Built-in Battery | Ni-MH 1.2V rechargeable battery |
| Socket Standard | DE Schuko |
| Application Environment | Indoor dry location only |
| Certifications | CE |
| Timer Cycle | 7-day weekly cycle, up to 20 ON/OFF programs |
Home lighting: Timed control for hallway lamps and floor lamps. Automatically turn lights on/off to simulate occupancy while away from home.
Gardening & pet care: Timed power for plant grow lights, aquarium pumps, reptile heating mats.
Small household appliances: Fans, humidifiers, chargers and small water heaters, reducing standby power waste.
Commercial use: Timing control for shop window display lights, advertising lamps and demo equipment.
1. For dry indoor use only. Not for bathrooms, outdoor wet areas. Never immerse in water.
2. Do not daisy-chain. Do not plug this timer socket into another timer.
3. Total connected load must not exceed 3680W. Do not connect high-power heating devices beyond rating.
4. The plug side remains live even when output is off. Only unplug it for full disconnection from mains.
5. This product is only for timing control. It has no residual current protection and cannot replace an RCD.
6. Keep children under adult supervision. Do not open the housing.
Wipe dust with dry soft cloth. Do NOT use wet cloth, alcohol or solvent cleaners.
The built-in Ni-MH battery degrades over time. Saved schedules may be lost once battery drains completely after long unplugged storage. Do not disassemble. Unauthorized opening causes electric shock hazard and invalidates certifications. No user-serviceable parts inside. Stop using immediately if faulty.
Q: Will timer settings be lost after power failure?
A: Built-in rechargeable battery keeps time & schedules for short blackouts. If left unplugged for a very long time and battery drains completely, settings will reset.
Q: Can I manually turn power ON/OFF temporarily?
A: Yes. The ON/AUTO/OFF button switches between manual ON, auto timer and manual OFF, without deleting programmed schedules.
Q: Can I connect electric heaters?
A: Total power must stay under 3680W. For inductive motor loads, verify rated current is within specification.
Q: Blank screen / no display?
A: Plug into mains to recharge the internal battery. If screen still stays dark after charging, the unit is faulty. Discontinue use.
